lte信令原理_lte信令_lte信令流程详解(6)

cellReselectionPriority 1,

threshX-High 7,

}

}

}

}

{ { { startingARFCN 60, bandIndicator dcs1800, followingARFCNs explicitListOfARFCNs: { 79, 78, 74, 66, 37, 34 } }, commonInfo { ncc-Permitted '11111111'B, q-RxLevMin 0, threshX-Low 10 } } } } } }

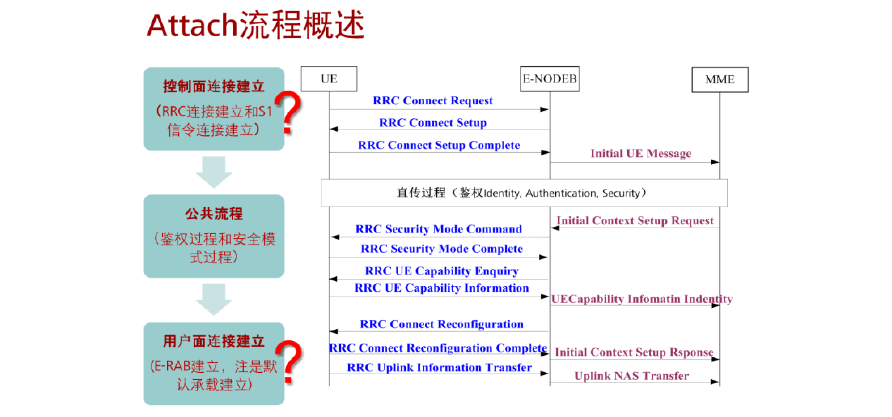

ATTACH流程详解

attachRequest:

no-security-protection-MM-message:

{

msg-body attachRequest:

{

nAS-key-set-identifier

{

tsc native-security-context, nAS-key-set-identifier nas-KSI6 },

ePS-attach-type

{

spare 0,

ePS-attach-type-value combined-attach },

ePS-Mobile-Identity

{

type-of-identity guti,

odd-or-even-indic

even-number-and-also-when-the-EPS-Mobile-Identity-is-used,

spare 15,

guti-body

{

mcc-mnc 6615040,

mME-Group-ID 33664,

mME-Code 16,

mTMSI -1073429223

}

},

ue-network-capability 'E0E0C0C0'H,

eSM-message-container

{

no-security-protection-SM-message

{

ePS-bearer-identity 0,

procedure-transaction-identity 1,

msg-body

{

msg-body pDNConnectivityRequest:

{

pDN-type

{

spare 0,

pDN-type-value iPv4

},

request-type

{

spare 0,

request-type-value initial-attach

},

protocol-configuration-options

{

ext 1,

spare 0,

configuration-protocol pPP-for-use-with-IP-PDP-type, protocol-list-package

{

{

protocol-ID i,

protocol-content

{

contents '01010010810600000000830600000000'H }

},

{

protocol-ID iP-address-allocation-via-NAS-signalling, protocol-content

{

}

}

}

}

}

}

}

},

last-visited-registered-TAI

{

mcc-mnc 6615040,

tac 30750

},

dRX-parameter

{

sPLIT-PG-CYCLE-CODE 32,

cN-Specific-DRX-cycle-length-coefficient

cN-Specific-DRX-cycle-length-coefficient-not-specified-by-the-MS,
