robotium_appium和uiautomator_手机自动化测试工具

这几天一直在学习robotium，但是在网上找了很久除了一个测试noteslist的例子外，其他基本上没有多少资料，但是网上关于noteslist的例子在我这不知道为什么老是行不同，于是就觉得自己弄，不按照网上的提供的方法了，经过2天的摸索和研究终于在今天搞定，下面就把我的成果分享给大家：

1.启动Eclipse执行 New --> Project --> Android Project --> Create Project from existingsample --> NotePad将自带的例子导入进来.

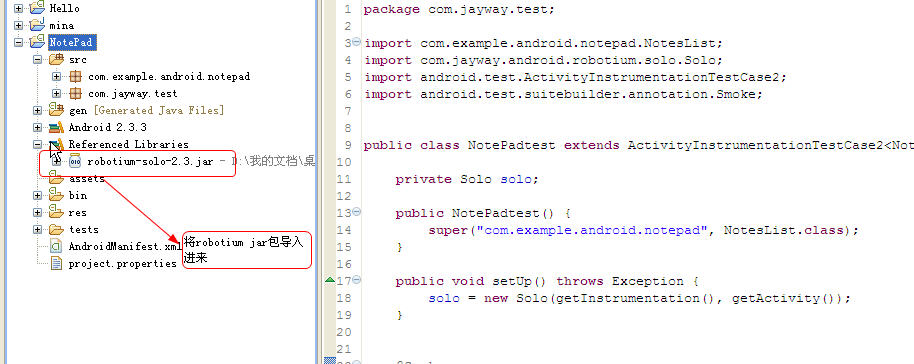

2.将robotium导入到刚新建的工程中如图

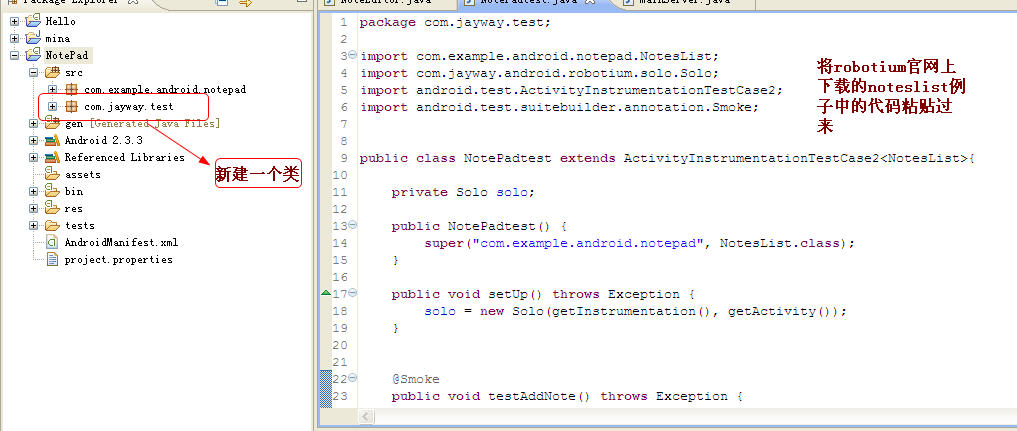

3、在该工程中新建一个类并将从robotium官网下载的例子粘贴到刚建的类中，如图

4、在AndroidManifest.xml中添加如下内容：

<uses-library android:name="android.test.runner" />

</application>

<uses-sdk android:minSdkVersion="10" android:targetSdkVersion="10"/>

<instrumentation android:targetPackage="com.example.android.notepad" //要测试的包

android:name="android.test.InstrumentationTestRunner" />

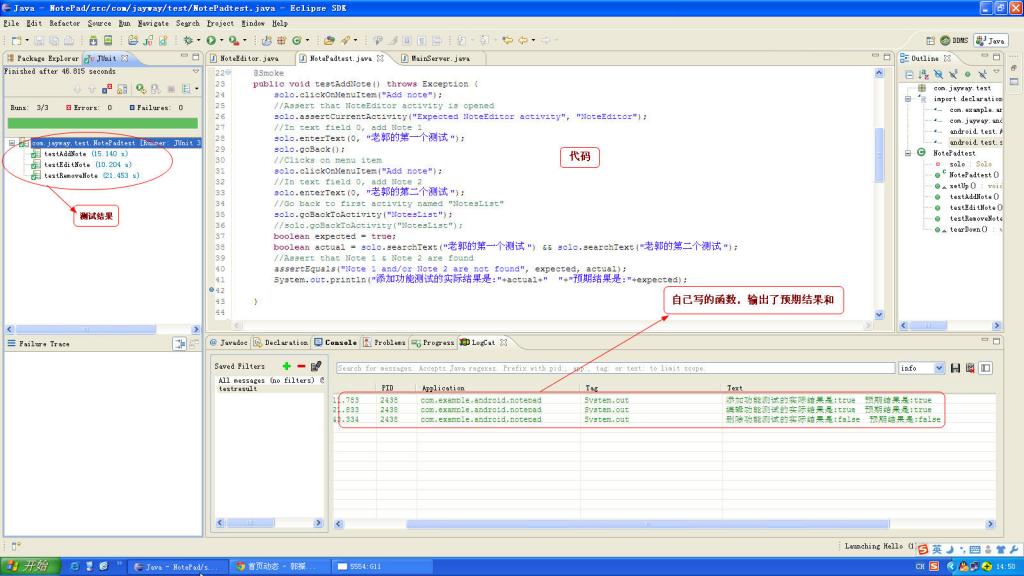

5、现在就可以运行了，下面是我的测试结果：

6、为了熟悉这些测试代码自己尝试了修改源代码，修改够的内容如下：

package com.jayway.test;

import com.example.android.notepad.NotesList;

import com.jayway.android.robotium.solo.Solo;

import android.test.ActivityInstrumentationTestCase2;

import android.test.suitebuilder.annotation.Smoke;

public class NotePadtest extends ActivityInstrumentationTestCase2<NotesList>{

private Solo solo;

public NotePadtest() {

super("com.example.android.notepad", NotesList.class);

}

public void setUp() throws Exception {

solo = new Solo(getInstrumentation(), getActivity());

}

@Smoke

public void testAddNote() throws Exception {

solo.clickOnMenuItem("Add note");

//Assert that NoteEditor activity is opened

solo.assertCurrentActivity("Expected NoteEditor activity", "NoteEditor");

//In text field 0, add Note 1

solo.enterText(0, "老郭的第一个测试 ");

solo.goBack();

//Clicks on menu item

solo.clickOnMenuItem("Add note");

//In text field 0, add Note 2

solo.enterText(0, "老郭的第二个测试 ");

//Go back to first activity named "NotesList"

solo.goBackToActivity("NotesList");

//solo.goBackToActivity("NotesList");

boolean expected = true;

boolean actual = solo.searchText("老郭的第一个测试 ") && solo.searchText("老郭的第二个测试 ");

//Assert that Note 1 & Note 2 are found

assertEquals("Note 1 and/or Note 2 are not found", expected, actual);

System.out.println("添加功能测试的实际结果是:"actual" ""预期结果是:"expected);

}

@Smoke

public void testEditNote() throws Exception {

// Click on the second list line

solo.clickInList(2);

// Change orientation of activity

solo.setActivityOrientation(Solo.LANDSCAPE);

// Change title

solo.clickOnMenuItem("Edit title");

//In first text field (0), add test

solo.enterText(0, " test");

solo.goBackToActivity("NotesList");

boolean expected = true;

// (Regexp) case insensitive

boolean actual = solo.searchText("老郭的(?i).*? test");

//Assert that Note 1 test is found

assertEquals("Note 1 test is not found", expected, actual);

}

@Smoke

public void testRemoveNote() throws Exception {

//(Regexp) case insensitive/text that contains "test"

solo.clickOnText("(?i).*?test.*");

//Delete Note 1 test

solo.clickOnMenuItem("Delete");

//Note 1 test & Note 2 should not be found

boolean expected = false;

boolean actual = solo.searchText("(?i).*?test.*");

//Assert that Note 1 test is not found

assertEquals("Note 1 Test is found", expected, actual);

solo.clickLongOnText("老郭的第二个测试");

//Clicks on Delete in the context menu

solo.clickOnText("(?i).*?Delete.*");

actual = solo.searchText("老郭的第二个测试 ");

//Assert that Note 2 is not found

assertEquals("Note 2 is found", expected, actual);

System.out.println("删除功能测试的实际结果是:"actual" ""预期结果是:"expected);

}

@Override

public void tearDown() throws Exception {

try {

//Robotium will finish all the activities that have been opened

solo.finalize();

} catch (Throwable e) {

e.printStackTrace();

}

getActivity().finish();

super.tearDown();

}

}
