一、什么是动态数码管？

七段数码管是电子开发过程中常用的输出显示设备。实验箱中的七段数码管采用共阴极。当数码管的哪一段输入高电平时，对应的段亮。

四合一七段数码管在单个静态数码管的基础上增加了位选择信号端口，用于选择哪个数码管。

8个数码管的a、b、c、d、e、f、g、h、dp都连在一起，8个数码管由各自的位选择信号控制。所选数码管显示数据，其余关闭。

这样，对于一组数码管动态扫描显示，需要两组信号来控制：一组是场输出口输出的字体代码，用于控制显示的字体，称为段代码；

另一组是位输出口的控制信号，用来选择数码管工作的个数，称为位码。

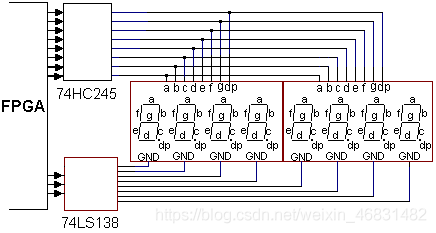

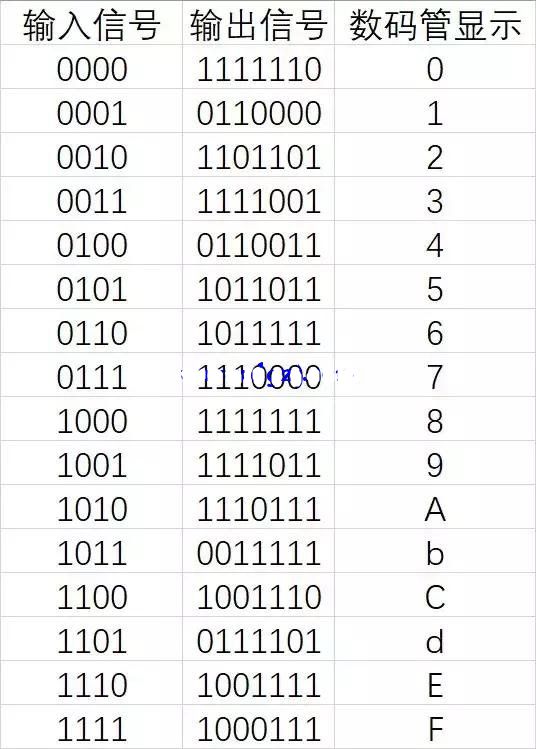

二、VHDL实现代码1.根据电路图完成VHDL描述：

代码如下：

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
entity dtsm is
 port(clk:in std_logic;
   key:in std_logic_vector(3 downto 0);
ledag:out std_logic_vector(6 downto 0);
sel:out std_logic_vector(2 downto 0)
);
 end dtsm;
 architecture beha of dtsm is
 begin
 process(clk)
  variable count:std_logic_vector(2 downto 0);
begin
 if (clkevent and clk=1) then
  count:=count+1;
end if;
  sel<=count;
 end process;
 process(key)
 begin
 case key is
when"0000"=>ledag<="0111111";
when"0001"=>ledag<="0000110";
when"0010"=>ledag<="1011011";
when"0011"=>ledag<="1001111";
when"0100"=>ledag<="1100110";
when"0101"=>ledag<="1101101";
when"0110"=>ledag<="1111101";
when"0111"=>ledag<="0000111";
when"1000"=>ledag<="1111111";
when"1001"=>ledag<="1100111";
when"1010"=>ledag<="1110111";
when"1011"=>ledag<="1111100";
when"1100"=>ledag<="0111001";
when"1101"=>ledag<="0111110";
when"1110"=>ledag<="1111001";
when"1111"=>ledag<="1110001";
when others=>null;
end case;
 end process;
end beha;

2.8 数码管显示不同的数字或符号

代码如下：

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
entity dtsm is
 port(clk:in std_logic;
   key:in std_logic_vector(3 downto 0);
ledag:out std_logic_vector(6 downto 0);
sel:out std_logic_vector(2 downto 0)
);
 end dtsm;
 architecture beha of dtsm is
signal ww:std_logic_vector(2 downto 0);
 begin
 process(clk)
  variable count:std_logic_vector(2 downto 0);
begin
 if (clkevent and clk=1) then
  count:=count+1;
end if;
  sel<=count;
  ww<=count;
 end process;
 process(ww)
 begin
 case ww is
when"000"=>ledag<="0111111";
when"001"=>ledag<="0000110";
when"010"=>ledag<="1011011";
when"011"=>ledag<="1001111";
when"100"=>ledag<="1100110";
when"101"=>ledag<="1101101";
when"110"=>ledag<="1111101";
when"111"=>ledag<="0000111";
when others=>null;
end case;
 end process;
end beha;

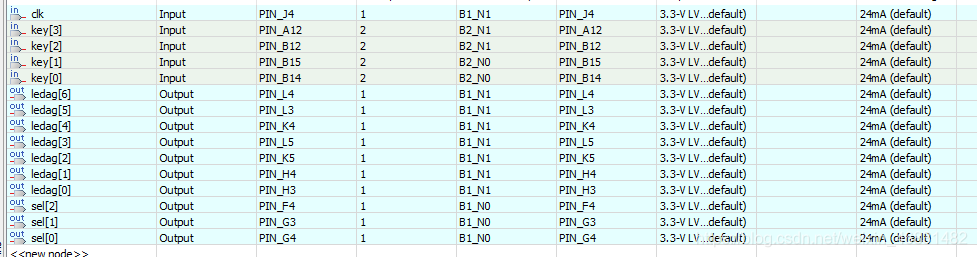

3.pin 锁

这里使用的url网络请求的数据。

总结

因为计数与时钟信号有关，如下

  variable count:std_logic_vector(2 downto 0);
begin
 if (clkevent and clk=1) then
  count:=count+1;
end if;
  sel<=count;
  ww<=count;
 end process;
 process(ww)
 begin
 case ww is
when"000"=>ledag<="0111111";
when"001"=>ledag<="0000110";
when"010"=>ledag<="1011011";
when"011"=>ledag<="1001111";
when"100"=>ledag<="1100110";
when"101"=>ledag<="1101101";
when"110"=>ledag<="1111101";
when"111"=>ledag<="0000111";
when others=>null;
end case;
 end process;

当时钟频率达到100HZ时，可以看到不同的数码管显示不同的数字/字符
