ios12卡贴机(有锁)/无锁机改电信VOLTE //高通基带//教程

电脑杂谈　发布时间：2019-08-28 11:02:10　来源：网络整理

运营商kddi卡贴解锁_苹果iphone解锁卡贴_解锁卡贴

基本要求：

一、ios12.0-12.12（可越狱就行）

二、已开通volte

三、确保已经固定G值和有完整可用的shsh2

四、卡贴机尽量别折腾3G回落无锁请食用

准备工作：

零、卡贴机必看技巧无锁忽略

用卡贴iccid解锁一定要用卡贴黑解！！！

一、运营商文件选择

band1/band3/band5的运营商规则文件：

Docomo_jp.bundle(可能会出现发送短信问题)

KDDI_LTE_only_jp.bundle(部分用户发生难以激活iMessage和FaceTime)

SingTel_sg.bundle(部分客户出现安卓VoLTE用户能够呼入)

锁定band5的运营商

USCellular_LTE_US.bundle[完美支持3G（3G不可上网）]

运营商kddi卡贴解锁_解锁卡贴_苹果iphone解锁卡贴

3G可上网4G完美VoLTE

Verizon_LTE_US.bundle（会出现iPhone需要激活，可能会在通话时发生，挂断电话运营商kddi卡贴解锁，风险较高）

二、越狱准备

app.ignition.fun 下载 uncover rootlessJB

查看并固定G值+越狱获取权限

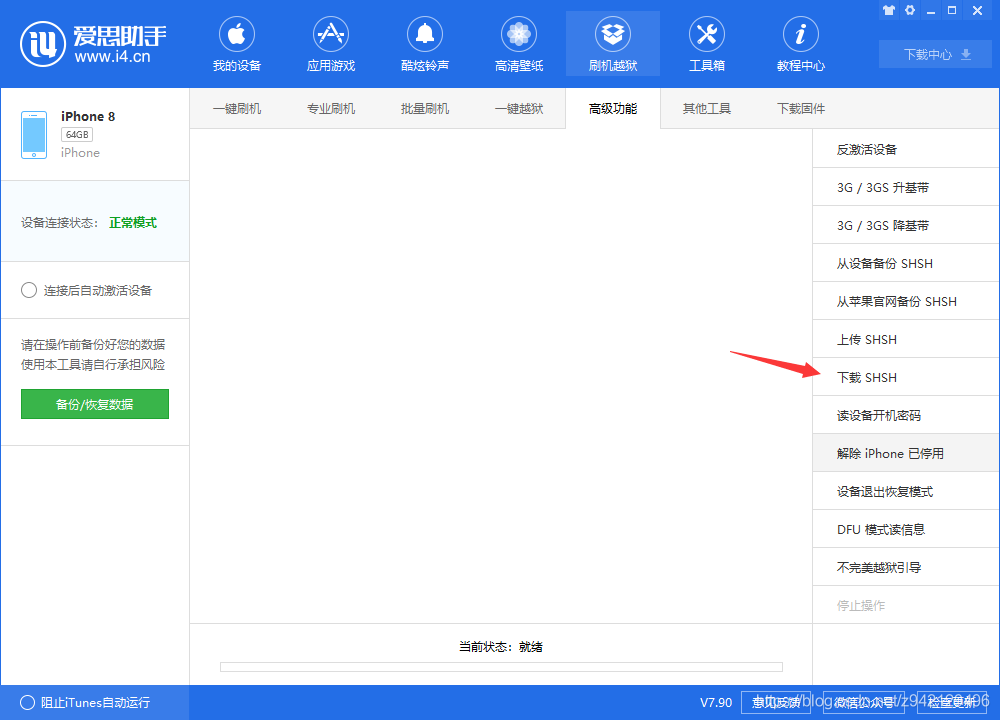

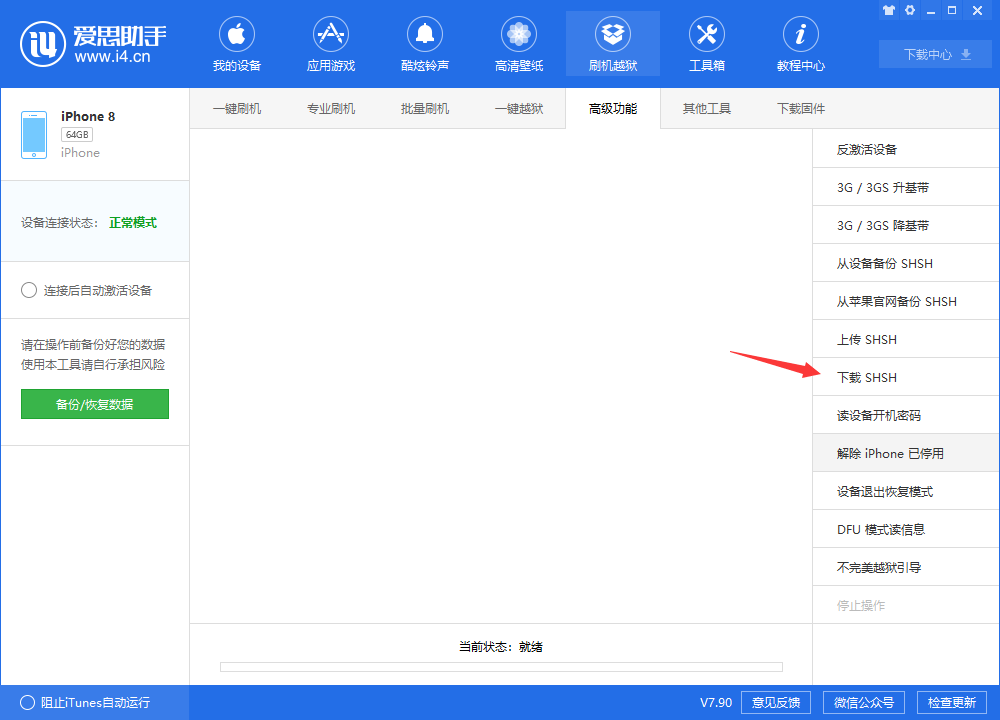

打开爱思助手》刷机越狱》高级功能》下载shsh文件

1550553875450

保存后开启shsh文件找到generator 复制值：0x5958c05b4d87e4

1550553999460

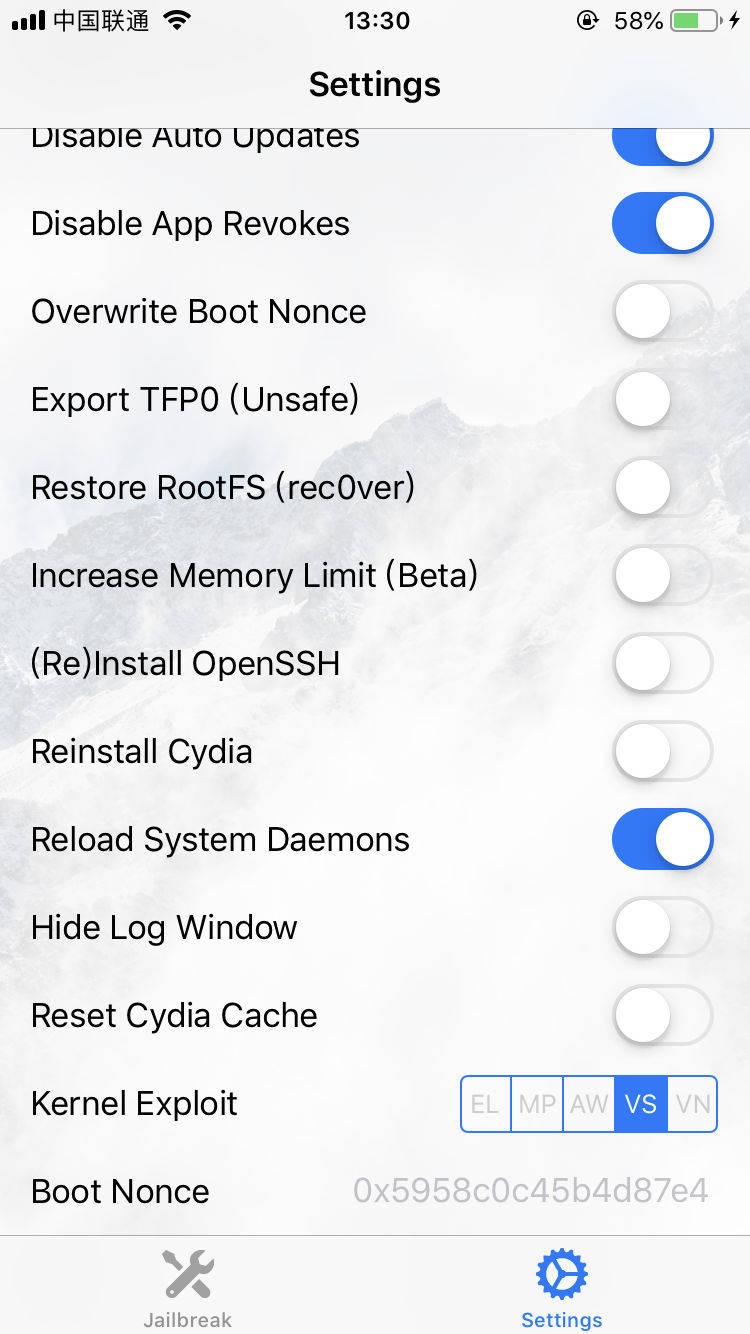

打开uncover》settings 找到 Boot Nonce 输入刚刚复制的值

1550554278784

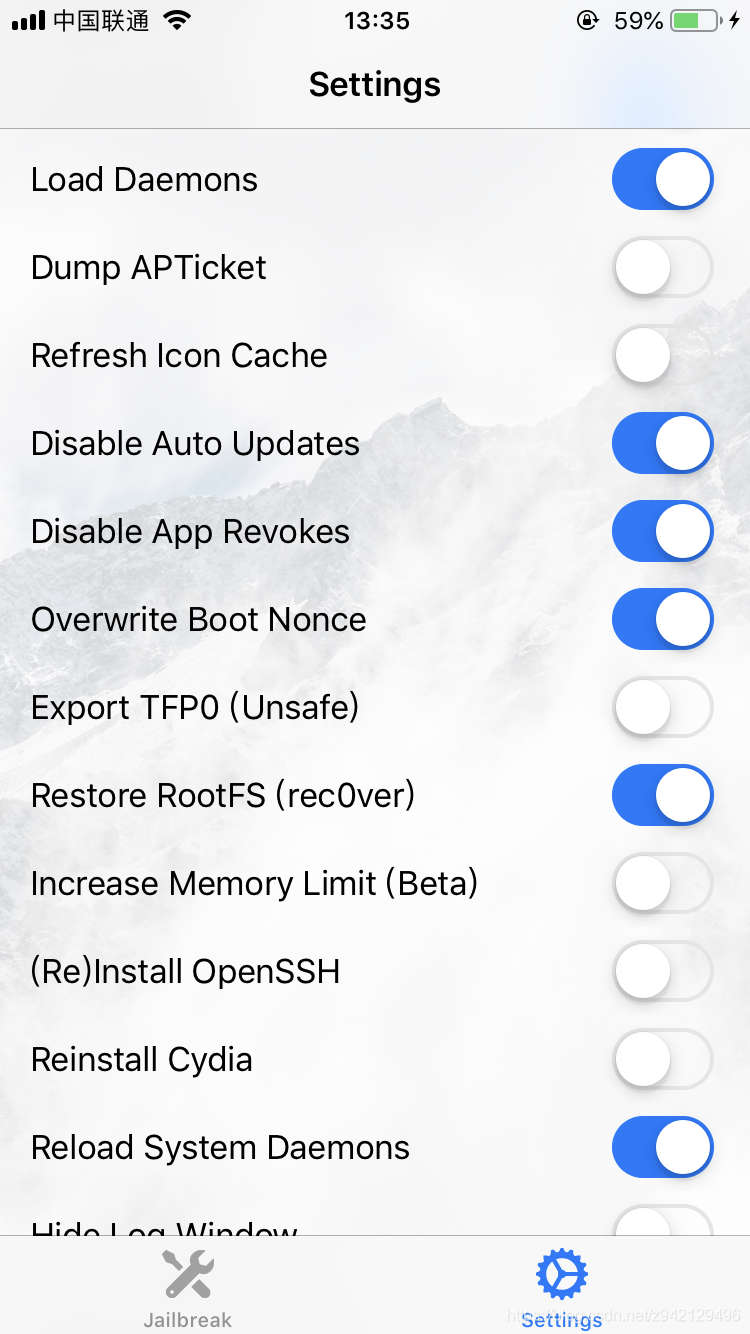

然后选中 load Daemons 、Disable Auto Updates、Disable App Revokes、Overwrite Boot Nonce、

Restore RootFS(recover)、Reload System Daemons 再去点击Jailbreak

1550554548506

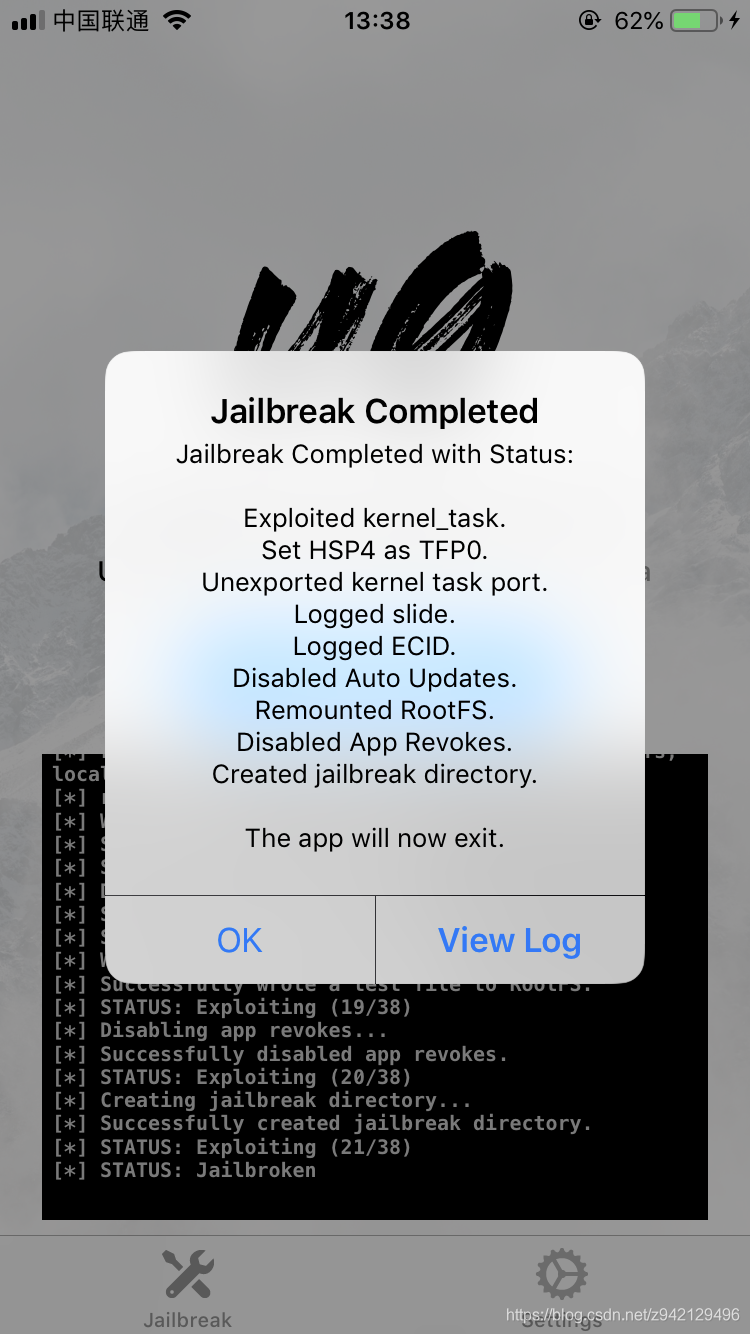

等待弹窗

苹果iphone解锁卡贴_运营商kddi卡贴解锁_解锁卡贴

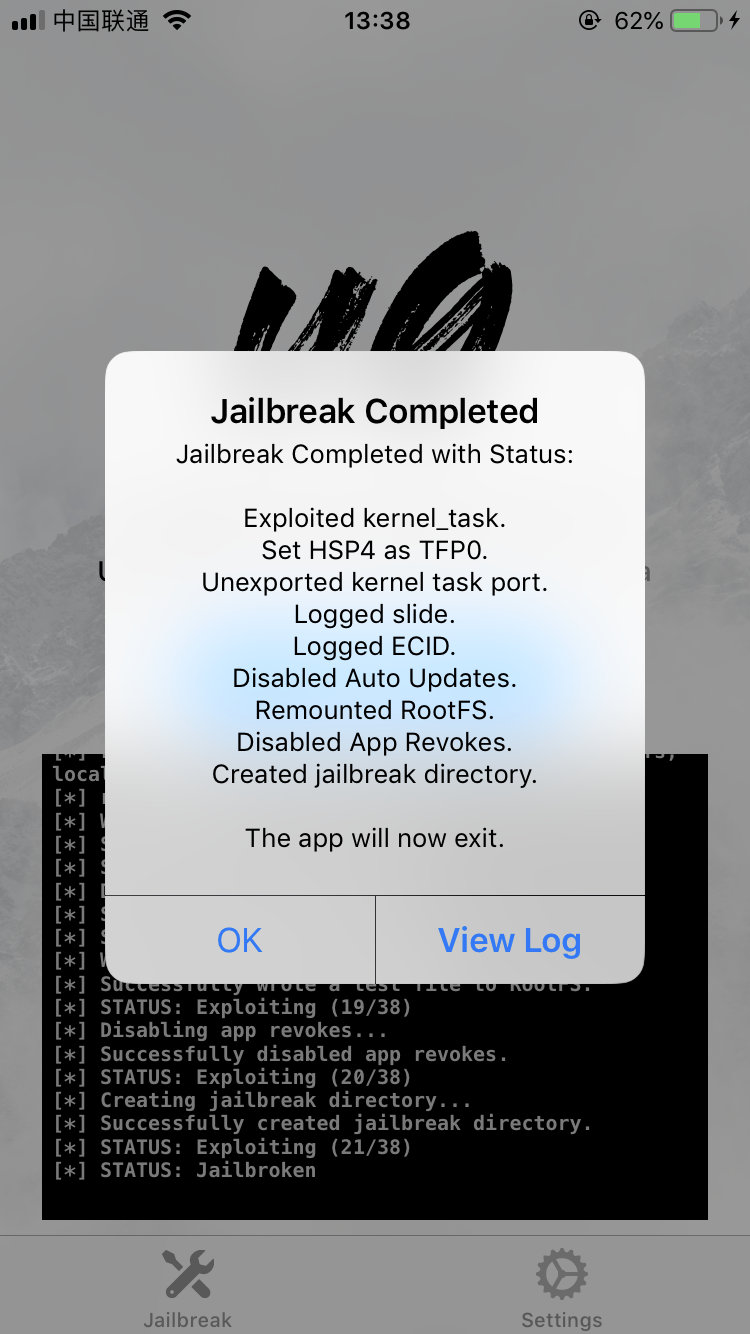

1550554744406

点击OK 自动退出应用

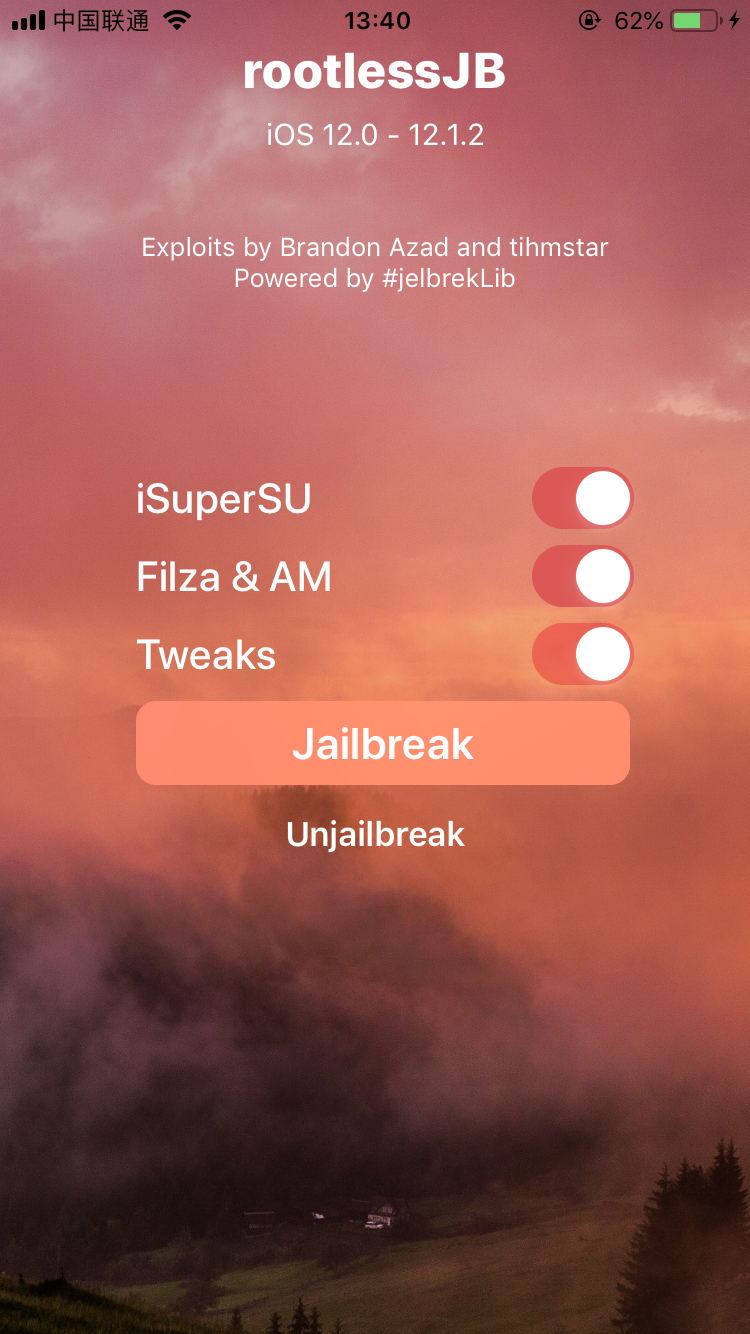

接着打开rootlessJB 点击Jailbreak 会手动注销然后解锁就有权限设置文件了

1550554807634

打开Filza

打开目录：/system/library/carrier bundles/iPhone/ChinaTelecom_USIM_cn.bundle/ 备份ChinaTelecom_USIM_cn.bundle文件夹并删掉去夹内内容

打开目录：/system/library/carrier bundles/iPhone/

并寻求上文提到的运营商文件夹

一、运营商文件选择

band1/band3/band5的运营商规则文件：

Docomo_jp.bundle(可能会出现发送短信问题)

KDDI_LTE_only_jp.bundle(部分用户发生难以激活iMessage和FaceTime)

SingTel_sg.bundle(部分客户出现安卓VoLTE用户能够呼入)

锁定band5的运营商

USCellular_LTE_US.bundle[完美支持3G（3G不可上网）]

苹果iphone解锁卡贴_解锁卡贴_运营商kddi卡贴解锁

3G可上网4G完美VoLTE

Verizon_LTE_US.bundle（会出现iPhone需要激活运营商kddi卡贴解锁，可能会在通话时发生，挂断电话，风险较高）

复制其中的文件到ChinaTelecom_USIM_cn.bundle中粘贴

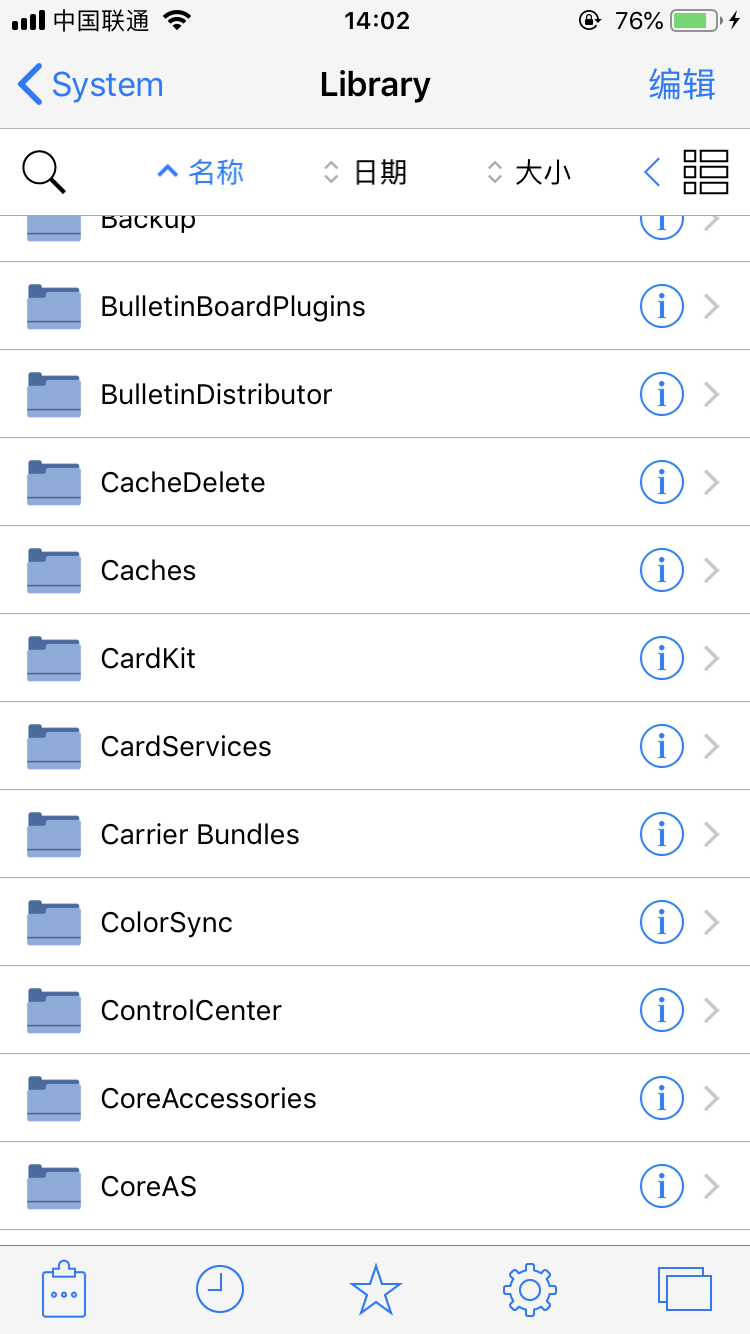

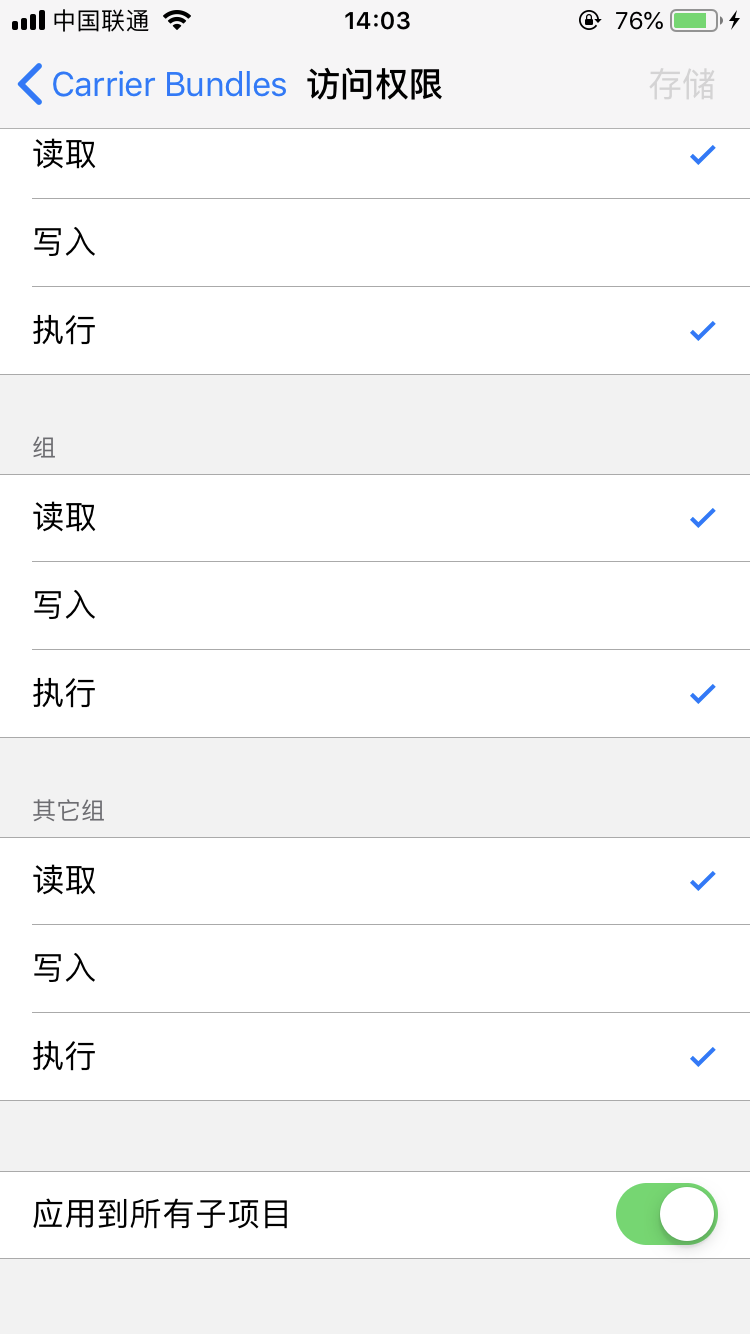

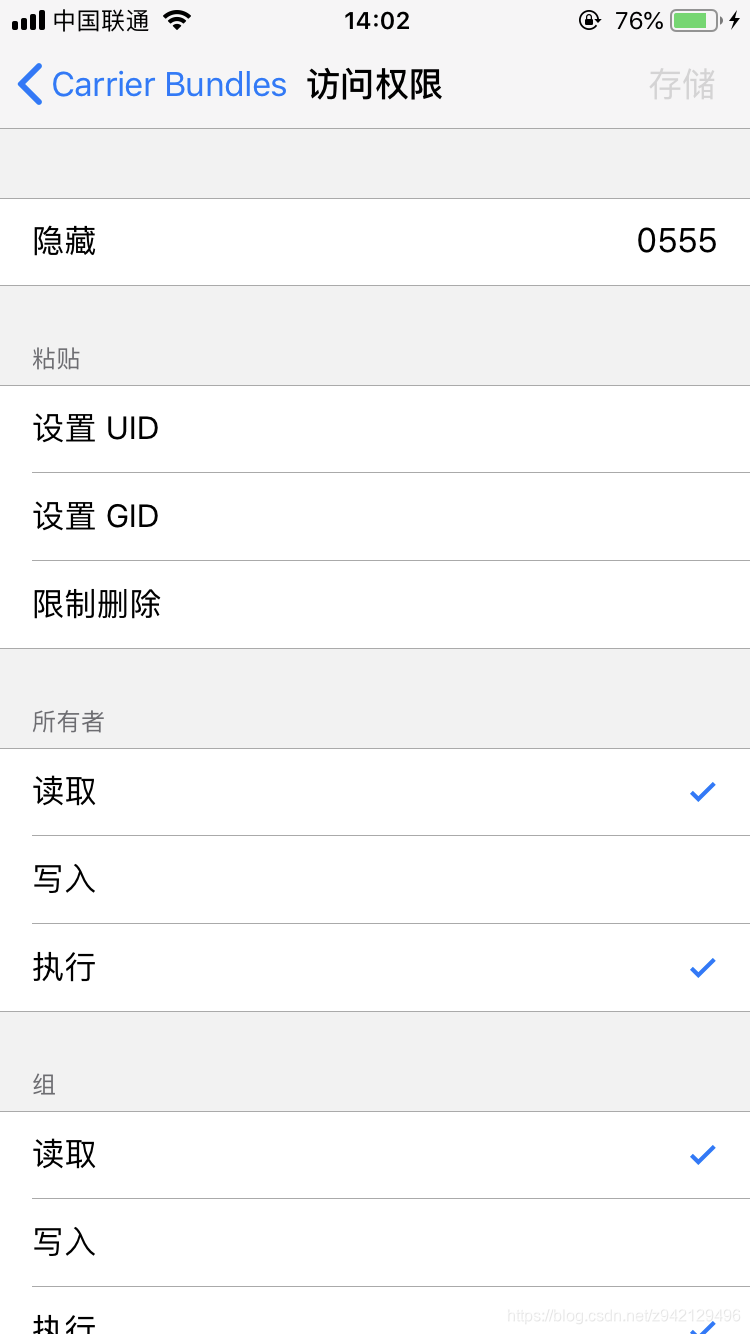

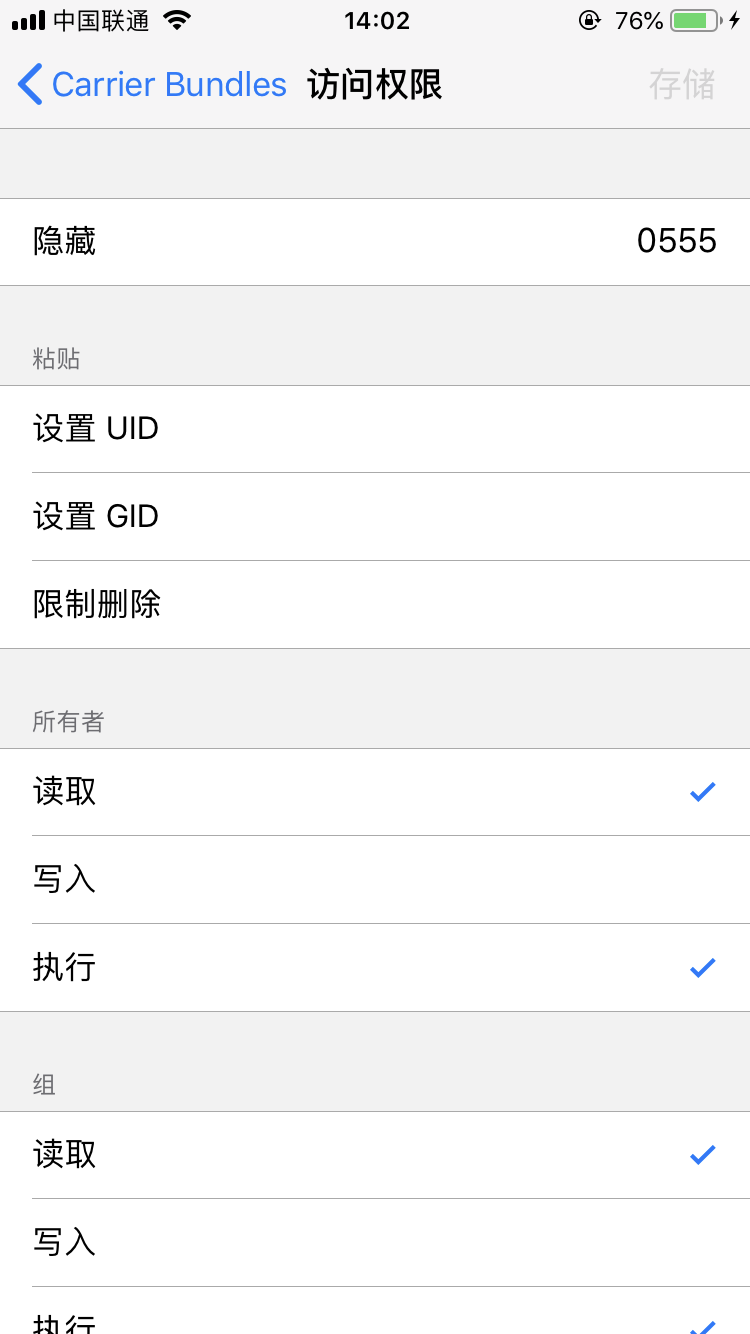

打开目录：/system/library 找到carrier bundles文件夹加权限0555应用到子项目

1550556147833 、

1550556175062

1550556199160

再单击右上角的存储

打开目录：/var/mobile/library/ 删除 carrier bundles 然后重启手机

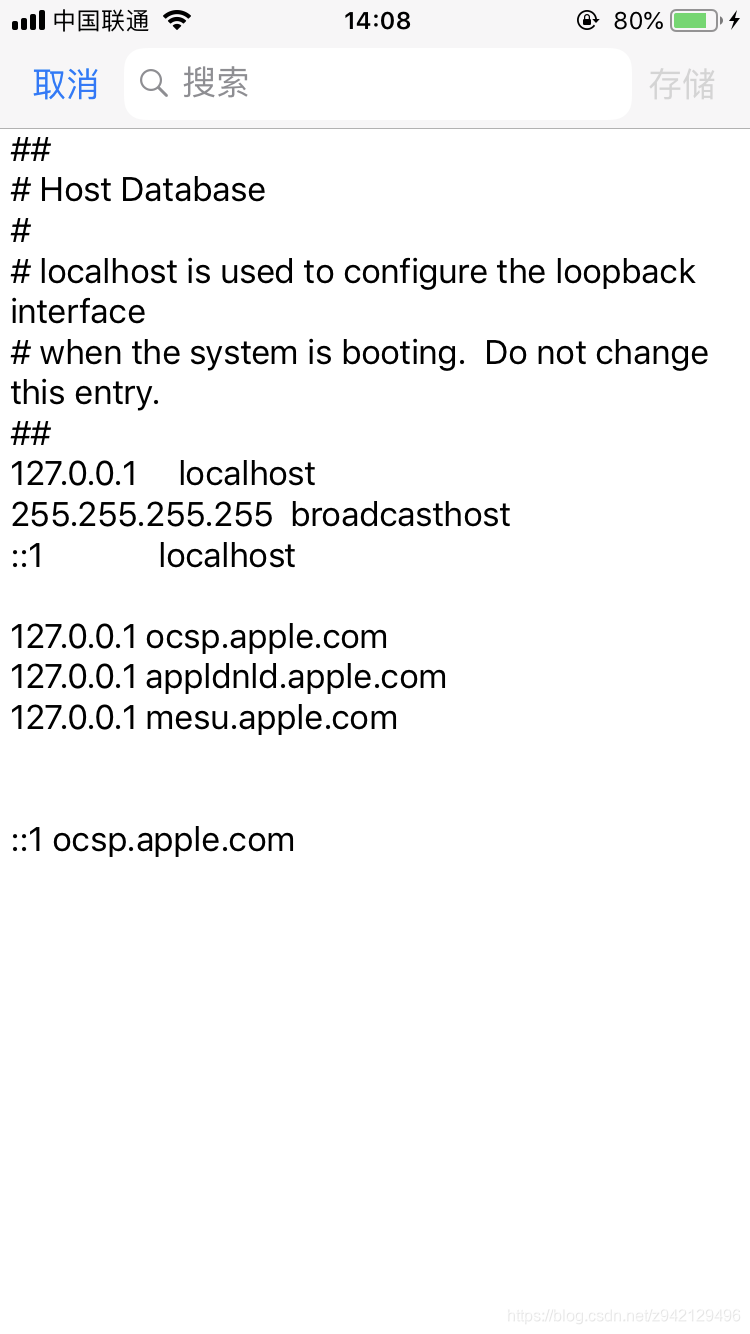

打开目录：etc 找到hosts文件用文本编辑器打开添加127.0.0.1 appldnld.apple.com 和 127.0.0.1 mesu.apple.com 保存文件并重启手机

1550556521839

重启后可能会出现LTE或空心信号或出现信号一会消失

等10秒左右

飞行一次再次出信号

然后执行下步操作没信号也直接跳过

运营商kddi卡贴解锁_苹果iphone解锁卡贴_解锁卡贴

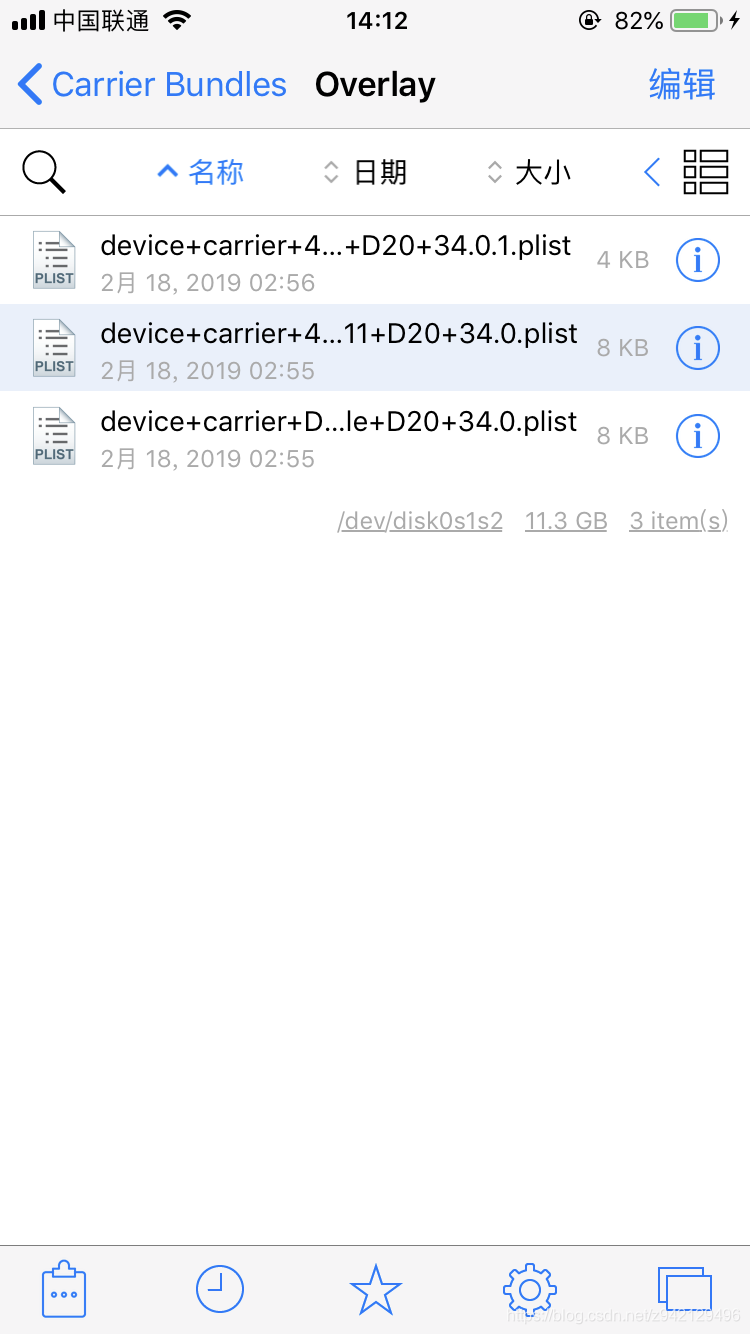

再次半越狱（uncover、rootlessJb）进入/var/mobile/library/carrier bundles/overlay/，打开device+carrier+46011+Dxx+3x.x.x.plist找到DerPriFileName，复制其值，一般都是 overrides_D20_D21_D22.der.pri

1550556732937

1550556759913

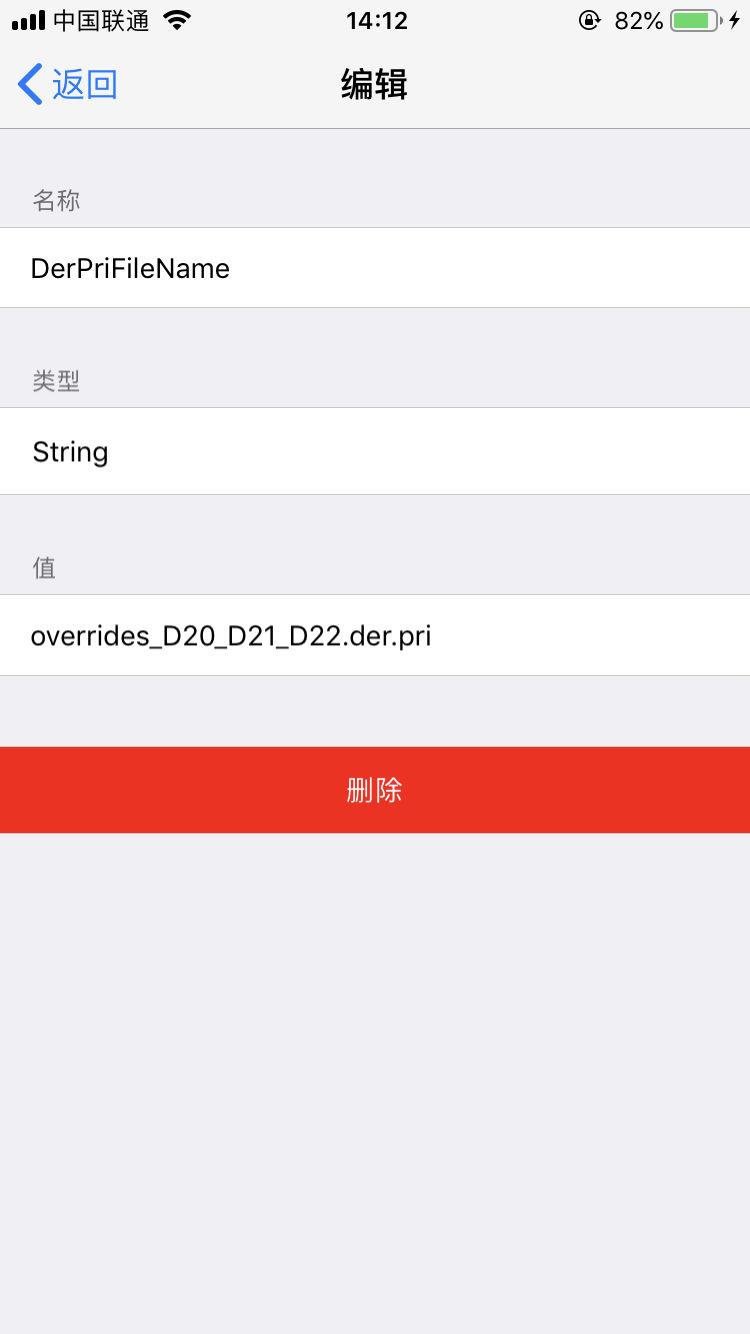

以文本编辑器打开文件

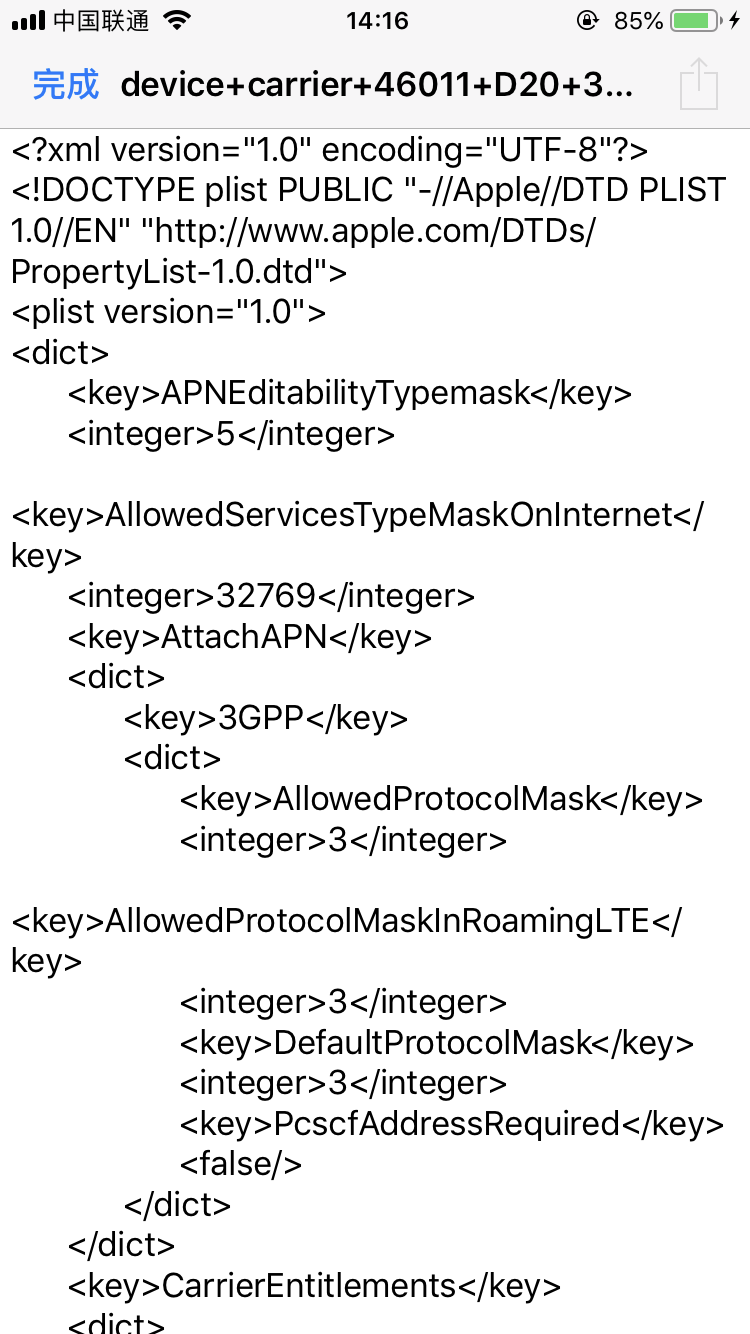

1550556997283

全选删除内容

复制下方代码粘贴进去保存文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>APNEditabilityTypemask</key>
	<integer>5</integer>
	<key>AllowedServicesTypeMaskOnInternet</key>
	<integer>32769</integer>
	<key>AttachAPN</key>
	<dict>
		<key>3GPP</key>
		<dict>
			<key>AllowedProtocolMask</key>
			<integer>3</integer>
			<key>AllowedProtocolMaskInRoamingLTE</key>
			<integer>3</integer>
			<key>DefaultProtocolMask</key>
			<integer>3</integer>
			<key>PcscfAddressRequired</key>
			<false/>
		</dict>
	</dict>
	<key>CarrierEntitlements</key>
	<dict>
		<key>Authentication</key>
		<dict>
			<key>BsfPort</key>
			<integer>8080</integer>
			<key>Type</key>
			<integer>2</integer>
			<key>Username</key>
			<string>0$IMSI@nai.epc.mnc$MNC.mcc$MCC.3gppnetwork.org</string>
		</dict>
		<key>ProtocolVersion</key>
		<string>2</string>
		<key>ProvisioningRecheckPeriod</key>
		<integer>5</integer>
		<key>ServerAddress</key>
		<string>https://applecsb.crm.189.cn:8101/CRM-CSB/HttpAppleService</string>
		<key>SupportedEntitlements</key>
		<integer>1024</integer>
		<key>UpdatePeriod</key>
		<integer>24</integer>
		<key>UserAgent</key>
		<string>3gpp-gba</string>
	</dict>
	<key>CarrierName</key>
	<string>中国电信</string>
	<key>CarrierSpace</key>
	<dict>
		<key>AuthClientID</key>
		<string>sg_client</string>
		<key>AuthorizationURL</key>
		<string>https://ct.crm.189.cn:86/pubPortal/appleAuth/init</string>
		<key>AutoRefreshMinimumIntervalMins</key>
		<integer>1440</integer>
		<key>DataOptimizationAllowed</key>
		<true/>
		<key>ManualRefreshMinimumIntervalMins</key>
		<integer>30</integer>
		<key>PlanProvisioningPollInterval</key>
		<integer>360</integer>
		<key>SupportsApps</key>
		<true/>
		<key>SupportsPlans</key>
		<true/>
		<key>SupportsUsage</key>
		<true/>
		<key>TeamIDList</key>
		<array>
			<string>7338DEUF7S</string>
		</array>
		<key>TokenURL</key>
		<string>https://ct.crm.189.cn:86/pubPortal/appleAuth/initback</string>
	</dict>
	<key>CellularDataUsage</key>
	<dict>
		<key>ShowMonthlyDataUsage</key>
		<true/>
	</dict>
	<key>CheckSMSonSIM</key>
	<true/>
	<key>CustomerServicePhoneNumber</key>
	<string>10000</string>
	<key>DataIndicatorOverrideForLTE</key>
	<string>4G</string>
	<key>DerPriFileName</key>
	<string>overrides_D20_D21_D22.der.pri</string>
	<key>DerPriFileVersion</key>
	<string>0.0.19</string>
	<key>EnableLTEAfterUpgrade</key>
	<true/>
	<key>IMSConfig</key>
	<dict>
		<key>AllowHandoverWithoutIMSVoiceService</key>
		<true/>
		<key>ConferenceCalling</key>
		<dict>
			<key>SendConferenceSubscribeInNewDialog</key>
			<true/>
			<key>conferenceServer</key>
			<string>sip:mmtel@conf-factory.ims.mnc${MNC}.mcc${MCC}.3gppnetwork.org</string>
		</dict>
		<key>Media</key>
		<dict>
			<key>EnableBandwidthSpecifiers</key>
			<true/>
			<key>HideSessionLevelDirection</key>
			<true/>
			<key>InactivityTimerRTCPSeconds</key>
			<integer>20</integer>
			<key>IncludeSDPMaxRed</key>
			<true/>
			<key>IncludeSDPModeChangeCapability</key>
			<true/>
			<key>MaxRedundancy</key>
			<integer>220</integer>
			<key>PreferredAMRWBMode</key>
			<string>8</string>
			<key>RTCPIntervalSeconds</key>
			<integer>5</integer>
			<key>UseRestrictiveDirectionWhenCreatingAnswer</key>
			<false/>
		</dict>
		<key>SMS</key>
		<dict>
			<key>SMSBundleToVoice</key>
			<true/>
			<key>SupportedDomains</key>
			<dict>
				<key>CDMA</key>
				<false/>
				<key>CDMA2000</key>
				<false/>
				<key>LTE</key>
				<true/>
			</dict>
			<key>TR1MTimer</key>
			<dict>
				<key>IsFatalOnIMSSendFailure</key>
				<true/>
				<key>IsFatalOnIMSSendSuccess</key>
				<false/>
				<key>TimerValue</key>
				<integer>133</integer>
			</dict>
			<key>allowCSFBInVolteMode</key>
			<true/>
		</dict>
		<key>Signaling</key>
		<dict>
			<key>AdditionalContactParams</key>
			<dict>
				<key>INVITE:200,PRACK:200,UPDATE:200</key>
				<string>audio</string>
				<key>REGISTER</key>
				<string>+g.3gpp.accesstype="cellular2"</string>
				<key>REGISTER,INVITE,INVITE:*</key>
				<string>+g.3gpp.mid-call;+g.3gpp.srvcc-alerting;+g.3gpp.ps2cs-srvcc-orig-pre-alerting</string>
			</dict>
			<key>AdditionalFeatureTags</key>
			<dict>
				<key>voice</key>
				<dict>
					<key>audio</key>
					<string></string>
				</dict>
			</dict>
			<key>AllowAnonymousEmergencyCalls</key>
			<false/>
			<key>AllowRegistrationCanceledState</key>
			<true/>
			<key>AllowResponsesOverDifferentTransport</key>
			<false/>
			<key>AlwaysUnsubscribeFromRegEvents</key>
			<false/>
			<key>CallEndReasons</key>
			<dict>
				<key>Blocked</key>
				<dict>
					<key>StatusCode</key>
					<integer>486</integer>
				</dict>
				<key>RejectedByUser</key>
				<dict>
					<key>ReasonHeaderText</key>
					<string>Decline</string>
					<key>StatusCode</key>
					<integer>603</integer>
				</dict>
			</dict>
			<key>ConvertSessionProgressToRinging</key>
			<false/>
			<key>DefaultAuthAlgorithm</key>
			<string>AKAv1-MD5</string>
			<key>DontSendPreconditionsIfCallWaitingDisabled</key>
			<true/>
			<key>DropRegistrationOnSRVCC</key>
			<true/>
			<key>EarlyMediaNeedsHeader</key>
			<true/>
			<key>EmergencyURNs</key>
			<dict>
				<key>110</key>
				<string>urn:service:sos.police</string>
				<key>119</key>
				<string>urn:service:sos.fire</string>
				<key>120</key>
				<string>urn:service:sos.ambulance</string>
				<key>122</key>
				<string>urn:service:sos.traffic</string>
			</dict>
			<key>EnableEmergencyRegistration</key>
			<true/>
			<key>EnableSenderName</key>
			<false/>
			<key>ForbiddenRegistrationErrorCodes</key>
			<string>4xx,-404,5xx,6xx</string>
			<key>IncomingCallEndReasons</key>
			<dict>
				<key>RequestTimeout</key>
				<dict>
					<key>Protocol</key>
					<string>Q.850</string>
					<key>ReasonHeaderCause</key>
					<integer>19</integer>
					<key>StatusCode</key>
					<integer>408</integer>
					<key>TerminationEvent</key>
					<string>RemoteHangup</string>
				</dict>
				<key>TemporarilyUnavailable</key>
				<dict>
					<key>StatusCode</key>
					<integer>480</integer>
					<key>TerminationEvent</key>
					<string>RemoteCallRejected</string>
				</dict>
			</dict>
			<key>IncompleteRegistrationThrottlingIntervalSeconds</key>
			<integer>0</integer>
			<key>InviteErrorResponsesToTriggerCSFB</key>
			<string>500,503</string>
			<key>LocalQoSTimeoutMOSeconds</key>
			<integer>6</integer>
			<key>LocalQoSTimeoutMTSeconds</key>
			<integer>6</integer>
			<key>MaxReRegistrationAttempts</key>
			<integer>0</integer>
			<key>MinSessionExpiresSeconds</key>
			<integer>600</integer>
			<key>NetworkTerminationRetryIntervalSeconds</key>
			<integer>1</integer>
			<key>Preconditions</key>
			<string>Supported</string>
			<key>ResetDisabledModeOnEvents</key>
			<string>SimInserted,AirplaneModeToggled,AccessNetworkChanged</string>
			<key>RingbackTimerSeconds</key>
			<integer>95</integer>
			<key>RingingTimerSeconds</key>
			<integer>90</integer>
			<key>SRVCCCleanupTimeoutSeconds</key>
			<integer>0</integer>
			<key>SendResumeInviteAsSendRecv</key>
			<false/>
			<key>SipTimers</key>
			<dict>
				<key>InviteResponseTimeout</key>
				<integer>6000</integer>
			</dict>
			<key>StartLocalQosTimerOnSessionProgress</key>
			<true/>
			<key>SupportPEarlyMediaHeader</key>
			<true/>
			<key>UseFakeSAsForDeregistration</key>
			<true/>
			<key>UseIPSec</key>
			<true/>
			<key>UseNormalIdentityForEmergencyUSIM</key>
			<true/>
			<key>VirtualInterfaceMtu</key>
			<integer>4096</integer>
		</dict>
		<key>Voice</key>
		<dict>
			<key>DialAsEmergencyOverIMSForUndetectedEmergency</key>
			<true/>
			<key>E911OverIMSSupported</key>
			<true/>
			<key>EnableVolteByDefault</key>
			<true/>
			<key>PreAlertingDTMFSupported</key>
			<true/>
		</dict>
		<key>XCAP</key>
		<dict>
			<key>BsfHost</key>
			<string>bsf.mnc011.mc60.pub.3gppnetwork.org</string>
			<key>BsfPort</key>
			<integer>8080</integer>
			<key>ContentType</key>
			<string>application/xcap-el+xml</string>
			<key>DisableCLIRModification</key>
			<true/>
			<key>DisableOnNetworkError</key>
			<true/>
			<key>NafHost</key>
			<string>xcap.ims.mnc011.mc60.pub.3gppnetwork.org</string>
			<key>NafPort</key>
			<integer>80</integer>
			<key>SupportsCLIR</key>
			<false/>
			<key>SupportsCW</key>
			<false/>
			<key>imsFeatureDependency</key>
			<false/>
			<key>supported</key>
			<true/>
		</dict>
	</dict>
	<key>IgnoresDeactivateOnNetworkScanServiceMask</key>
	<integer>131072</integer>
	<key>MMS</key>
	<dict>
		<key>GroupModeAllowUserOverride</key>
		<true/>
		<key>GroupModeEnabled</key>
		<false/>
		<key>MMSC</key>
		<string>http://mmsc.vnet.mobi</string>
		<key>MaxMessageSize</key>
		<integer>307200</integer>
		<key>MaxRecipients</key>
		<integer>10</integer>
		<key>MaxSubjectLenBytes</key>
		<integer>80</integer>
		<key>MaxVoiceCallWaitPeriod</key>
		<integer>0</integer>
		<key>Proxy</key>
		<string>10.0.0.200:80</string>
		<key>vCard21ExportModeEnabled</key>
		<true/>
	</dict>
	<key>MaxBluetoothModemConnections</key>
	<integer>5</integer>
	<key>PhoneNumberRegistrationGatewayAddress</key>
	<string>00447786205094</string>
	<key>RemoteCardProvisioningSettings</key>
	<dict>
		<key>ActivatingStateSubscriptionCheckTimerIntervals</key>
		<array>
			<integer>300</integer>
			<integer>480</integer>
			<integer>600</integer>
		</array>
		<key>InconsistentICCIDLength</key>
		<true/>
		<key>MatchingICCIDPrefixes</key>
		<array>
			<string>898603</string>
			<string>898611</string>
		</array>
		<key>MinCompatibleWatchOS</key>
		<string>5.1</string>
		<key>ProvisioningMethod</key>
		<string>CarrierFlow</string>
		<key>ServerURL</key>
		<string>https://esimapple.crm.189.cn</string>
		<key>SupportedSKUs</key>
		<array>
			<string>SKU_CU</string>
		</array>
		<key>SupportsFauxCard</key>
		<true/>
		<key>UsesAutoAssignment</key>
		<false/>
	</dict>
	<key>RemoteDiagnosticsWWANAllowed</key>
	<true/>
	<key>SMSSettings</key>
	<dict>
		<key>CustomTeleserviceIDs</key>
		<dict>
			<key>FDEA</key>
			<string>1004</string>
			<key>FDED</key>
			<string>1002</string>
		</dict>
		<key>IgnoreWAPPushBits</key>
		<integer>69</integer>
		<key>TerminalRegistration</key>
		<dict>
			<key>DestinationAddress</key>
			<string>10659401</string>
			<key>Registration</key>
			<string>&lt;a1&gt;&lt;b1&gt;ACM-$MODEL&lt;/b1&gt;&lt;b2&gt;$MEID&lt;/b2&gt;&lt;b3&gt;$IMSI&lt;/b3&gt;&lt;b4&gt;$VERSION&lt;/b4&gt;&lt;/a1&gt;</string>
			<key>TeleserviceID</key>
			<integer>65005</integer>
		</dict>
	</dict>
	<key>SaveICCIDToCache</key>
	<true/>
	<key>Services</key>
	<array>
		<dict>
			<key>ServiceCode</key>
			<string>10000</string>
			<key>ServiceName</key>
			<string>客户服务</string>
		</dict>
		<dict>
			<key>ServiceCode</key>
			<string>10001</string>
			<key>ServiceName</key>
			<string>自助服务</string>
		</dict>
		<dict>
			<key>ServiceCode</key>
			<string>+8618918910000</string>
			<key>ServiceName</key>
			<string>国际漫游客服</string>
		</dict>
	</array>
	<key>ShouldHideAllVoicemailUI</key>
	<true/>
	<key>Show3GSwitch</key>
	<false/>
	<key>Show4GSwitch</key>
	<true/>
	<key>ShowDialAssist</key>
	<true/>
	<key>ShowMessagesConversationListFilteringPrompt</key>
	<false/>
	<key>ShowTTY</key>
	<false/>
	<key>ShowVolteSwitch</key>
	<true/>
	<key>StatusBarImages</key>
	<array>
		<dict>
			<key>AllowPrefixMatching</key>
			<true/>
			<key>CarrierName</key>
			<string>CHN-CT</string>
			<key>StatusBarCarrierName</key>
			<string>中国电信</string>
		</dict>
		<dict>
			<key>AllowPrefixMatching</key>
			<false/>
			<key>CarrierName</key>
			<string>U.S. Cellular</string>
			<key>StatusBarCarrierName</key>
			<string>中国电信</string>
		</dict>
		<dict>
			<key>AllowPrefixMatching</key>
			<true/>
			<key>StatusBarCarrierName</key>
			<string>中国电信</string>
		</dict>
	</array>
	<key>StockSymboli</key>
	<array>
		<dict>
			<key>name</key>
			<string>中国电信</string>
			<key>symbol</key>
			<string>0728.HK</string>
		</dict>
	</array>
	<key>SupportedSIMs</key>
	<array>
		<string>46011</string>
		<string>20404_ID-898611</string>
	</array>
	<key>SupportsFlashInfoCallTimer</key>
	<true/>
	<key>SupportsImsCapability</key>
	<true/>
	<key>SupportsNITZ</key>
	<false/>
	<key>SupportsUserBusyCauseCode</key>
	<true/>
	<key>URLifyUnquotedShorts</key>
	<true/>
	<key>VVMIgnoresIntlDataRoaming</key>
	<true/>
	<key>apns</key>
	<array>
		<dict>
			<key>configuration</key>
			<array>
				<dict>
					<key>AllowedProtocolMask</key>
					<integer>3</integer>
					<key>AllowedProtocolMaskInRoaming</key>
					<integer>3</integer>
					<key>DefaultProtocolMask</key>
					<integer>3</integer>
					<key>apn</key>
					<string>ctnet</string>
					<key>password</key>
					<string></string>
					<key>type-mask</key>
					<integer>1081395</integer>
					<key>username</key>
					<string></string>
				</dict>
				<dict>
					<key>AllowedProtocolMask</key>
					<integer>3</integer>
					<key>AllowedProtocolMaskInRoaming</key>
					<integer>3</integer>
					<key>DefaultProtocolMask</key>
					<integer>3</integer>
					<key>apn</key>
					<string>ctwap</string>
					<key>password</key>
					<string></string>
					<key>type-mask</key>
					<integer>4</integer>
					<key>username</key>
					<string></string>
				</dict>
				<dict>
					<key>AllowedProtocolMask</key>
					<integer>3</integer>
					<key>AllowedProtocolMaskInRoaming</key>
					<integer>3</integer>
					<key>DefaultProtocolMask</key>
					<integer>3</integer>
					<key>WaitForBringUpComplete</key>
					<true/>
					<key>apn</key>
					<string>IMS</string>
					<key>password</key>
					<string></string>
					<key>type-mask</key>
					<integer>131072</integer>
					<key>username</key>
					<string></string>
				</dict>
				<dict>
					<key>AllowedProtocolMask</key>
					<integer>3</integer>
					<key>AllowedProtocolMaskInRoaming</key>
					<integer>3</integer>
					<key>DefaultProtocolMask</key>
					<integer>3</integer>
					<key>apn</key>
					<string>ctnet</string>
					<key>password</key>
					<string></string>
					<key>type-mask</key>
					<integer>1081394</integer>
					<key>username</key>
					<string></string>
				</dict>
				<dict>
					<key>AllowedProtocolMask</key>
					<integer>3</integer>
					<key>DefaultProtocolMask</key>
					<integer>3</integer>
					<key>apn</key>
					<string>SOS</string>
					<key>password</key>
					<string></string>
					<key>type-mask</key>
					<integer>262144</integer>
					<key>username</key>
					<string></string>
				</dict>
			</array>
			<key>technology-mask</key>
			<integer>9</integer>
		</dict>
	</array>
	<key>e_only_whitelist</key>
	<array>
		<string>08</string>
		<string>000</string>
		<string>110</string>
		<string>118</string>
		<string>119</string>
		<string>120</string>
		<string>122</string>
		<string>999</string>
	</array>
	<key>nais</key>
	<array>
		<dict>
			<key>nai</key>
			<string>default</string>
			<key>password</key>
			<string>vnet.mobi</string>
			<key>username</key>
			<string>ctwap@mycdma.cn</string>
		</dict>
	</array>
</dict>
</plist>

再开启文件找到DerPriFileName并根据源文件设置值（就是刚刚复制的值）

再次打开目录/var/mobile/library/ 找到 carrier bundles 文件夹修改权限为0555并应用到子项目

重启手机

如果有无服务状况就飞一下

USCellular运营商是秒出信号自用的

请忽略我的联通

by：木头（一斤苹果梨）

本文来自电脑杂谈，转载请注明本文网址：
https://www.pc-fly.com/a/shumachanpin/article-120838-1.html

相关阅读

发表评论　　请自觉遵守互联网相关的政策法规，严禁发布、暴力、反动的言论
