关于此博客的注释：本文主要分享如何为服务器安装机械硬盘。

内容

具体安装过程：1.确认原始硬盘节点

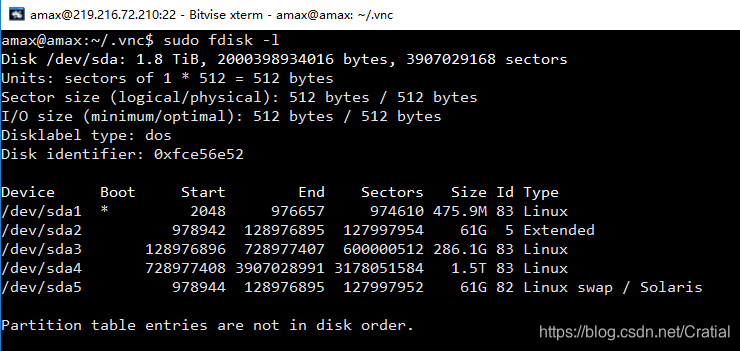

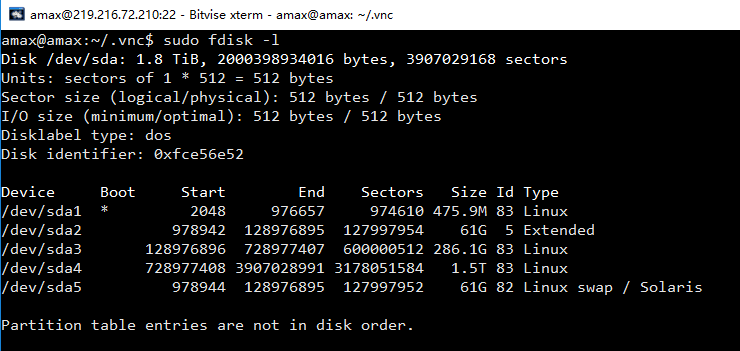

sudofdisk-l

服务器硬盘安装

原始硬盘被标识为sda

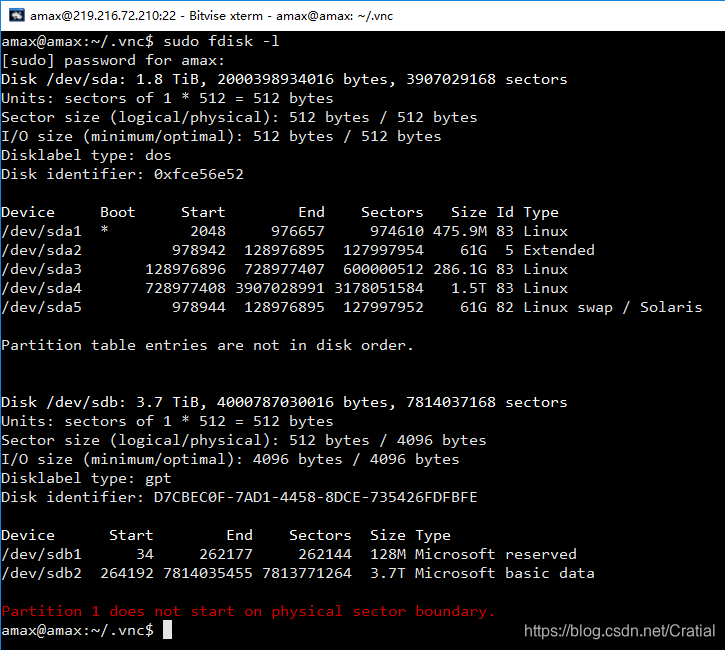

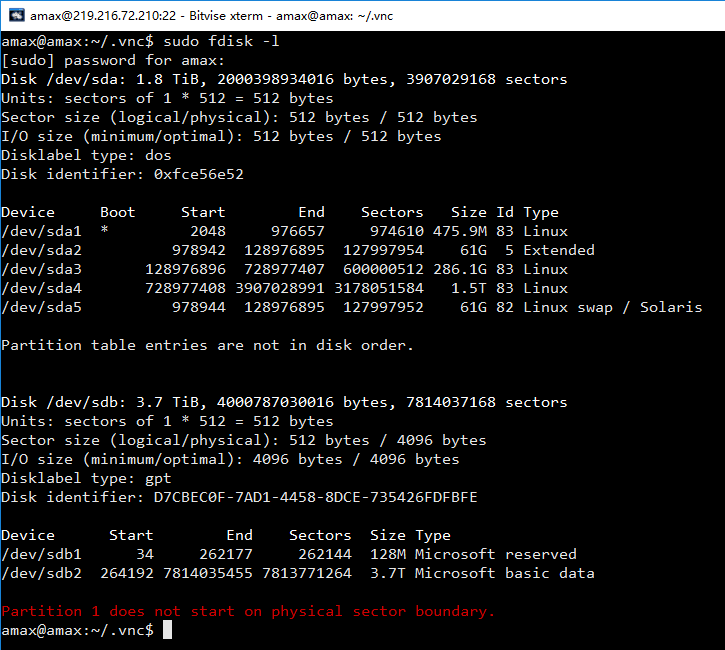

2.安装物理硬盘，然后再次检查硬盘信息

服务器硬盘安装

新添加的硬盘显示为sdb，并且已经存在两个分区sdb1和sdb2

ibm服务器硬盘安装_服务器硬盘安装_服务器硬盘安装

3.创建分区

在创建分区之前，请删除两个现有分区sdb1和sdb2。

命令：sudo fdisk / dev / sdb

此命令用于分区管理，并且将显示类似以下内容的内容：

Command (m for help):
这里按m获得帮助
a   toggle a bootable flag   将分区设置为启动区
b   edit bsd disklabel    编辑bsd的disklabel
c   toggle the dos compatibility flag  设置该分区为dos分区
d   delete a partition 删除分区
l   list known partition types  列出已知的分区类型
m   print this menu  打印帮助列表
n   add a new partition 创建新分区
o   create a new empty DOS partition table
p   print the partition table查看分区信息
q   quit without saving changes 退出不保存
s   create a new empty Sun disklabel
t   change a partitions system id改变分区类型
u   change display/entry units
v   verify the partition table
w   write table to disk and exit 保存退出
x   extra functionality (experts only)

输入p并按Enter查看分区信息，输入d删除其中一个分区，然后输入d删除另一个分区

amax@amax:~/.vnc$ sudo fdisk /dev/sdb
Welcome to fdisk (util-linux 2.27.1).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.
Command (m for help): m
Help:
Generic
d delete a partition
F list free unpartitioned space
l list known partition types
n add a new partition
p print the partition table
t change a partition type
v verify the partition table
i print information about a partition
Misc
m print this menu
x extra functionality (experts only)
Script
I load disk layout from sfdisk script file
O dump disk layout to sfdisk script file
Save & Exit
w write table to disk and exit
q quit without saving changes
Create a new label
g create a new empty GPT partition table
G create a new empty SGI (IRIX) partition table
o create a new empty DOS partition table
s create a new empty Sun partition table
Command (m for help): p
Disk /dev/sdb: 3.7 TiB, 4000787030016 bytes, 7814037168 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: D7CBEC0F-7AD1-4458-8DCE-735426FDFBFE
Device Start End Sectors Size Type
/dev/sdb1 34 262177 262144 128M Microsoft reserved
/dev/sdb2 264192 7814035455 7813771264 3.7T Microsoft basic data
Partition 1 does not start on physical sector boundary.
Command (m for help): d
Partition number (1,2, default 2): 2
Partition 2 has been deleted.
Command (m for help): p
Disk /dev/sdb: 3.7 TiB, 4000787030016 bytes, 7814037168 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: D7CBEC0F-7AD1-4458-8DCE-735426FDFBFE
Device Start End Sectors Size Type
/dev/sdb1 34 262177 262144 128M Microsoft reserved
Partition 1 does not start on physical sector boundary.
Command (m for help): d
Selected partition 1
Partition 1 has been deleted.
Command (m for help): p
Disk /dev/sdb: 3.7 TiB, 4000787030016 bytes, 7814037168 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: D7CBEC0F-7AD1-4458-8DCE-735426FDFBFE

输入n并按Enter键创建一个新分区（此处仅创建一个新分区），然后为相关参数选择建议的默认值。

Command (m for help): n
Partition number (1-128, default 1): 1
First sector (34-7814037134, default 2048): 2048
Last sector, +sectors or +size{K,M,G,T,P} (2048-7814037134, default 7814037134): 7814037134
Created a new partition 1 of type Linux filesystem and of size 3.7 TiB.
Command (m for help): p
Disk /dev/sdb: 3.7 TiB, 4000787030016 bytes, 7814037168 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: D7CBEC0F-7AD1-4458-8DCE-735426FDFBFE
Device Start End Sectors Size Type
/dev/sdb1 2048 7814037134 7814035087 3.7T Linux filesystem
Command (m for help): w
The partition table has been altered.
Calling ioctl() to re-read partition table.
Syncing disks.

服务器硬盘安装_ibm服务器硬盘安装_服务器硬盘安装

再次检查磁盘信息，新分区为/ dev / sdb1


amax@amax:~/.vnc$ sudo fdisk -l
Disk /dev/sda: 1.8 TiB, 2000398934016 bytes, 3907029168 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0xfce56e52
Device Boot Start End Sectors Size Id Type
/dev/sda1 * 2048 976657 974610 475.9M 83 Linux
/dev/sda2 978942 128976895 127997954 61G 5 Extended
/dev/sda3 128976896 728977407 600000512 286.1G 83 Linux
/dev/sda4 728977408 3907028991 3178051584 1.5T 83 Linux
/dev/sda5 978944 128976895 127997952 61G 82 Linux swap / Solaris
Partition table entries are not in disk order.
Disk /dev/sdb: 3.7 TiB, 4000787030016 bytes, 7814037168 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: D7CBEC0F-7AD1-4458-8DCE-735426FDFBFE
Device Start End Sectors Size Type
/dev/sdb1 2048 7814037134 7814035087 3.7T Linux filesystem

格式化分区

完成分区后，必须将硬盘格式化为Linux系统格式

命令：sudo mkfs -t ext4 / dev / sdb1

这里的格式是ext4文件格式，与另一个硬盘的文件格式一致

amax@amax:~/.vnc$ sudo mkfs -t ext4 /dev/sdb1
mke2fs 1.42.13 (17-May-2015)
Creating filesystem with 976754385 4k blocks and 244195328 inodes
Filesystem UUID: ed919d6a-9519-4a9a-8763-9f1e2dbeaacb
Superblock backups stored on blocks:
32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
4096000, 7962624, 11239424, 20480000, 23887872, 71663616, 78675968,
102400000, 214990848, 512000000, 550731776, 644972544
Allocating group tables: done
Writing inode tables: done
Creating journal (32768 blocks): done
Writing superblocks and filesystem accounting information: done

4、创建一个新的挂载点

为方便普通用户访问，请使用管理员权限在/ home目录中创建/ extend文件夹作为安装节点
