科赫雪花的Java递归实现

今天要编写k阶Koch雪花的递归实现（K值需要您手动输入）至于什么是Koch雪花，请自己百度.

首先，考虑如何编写此程序. 当count = 0时java制作雪花，它应该是一个三角形. 这三点由您在开始时确定，以后的更改将基于这三点. 如果不为0，则需要计算相对于三角形的9个点，每边两个点，并计算与该三角形相对应的三角形的第三个顶点.

首先在JFrame中添加一个面板，我们需要在该面板上绘制.

让我们再次看这张照片. 这张图片描述了从两个点计算另外三个点的过程.

立即开始在面板中绘图:

static class showpanel extends JPanel{
    int number = 0;
    public void setNumber(int number) {
      this.number = number;
      repaint();
    }
    public void paintComponent(Graphics g) {
      super.paintComponent(g);//画一个简单的panel

      int side =(int)(Math.min((int)getWidth(),(int)getHeight())*0.8);
      int high =(int)(side*Math.cos(Math.toRadians(30)));

       Point p1 = new Point(getWidth() / 2, 10);
       Point p2 = new Point(getWidth() / 2 - side / 2, 10 + high);
       Point p3 = new Point(getWidth() / 2 + side / 2, 10 + high);

       playKochSnowFlake(g, number, p1, p2);
       playKochSnowFlake(g, number, p2, p3);
       playKochSnowFlake(g, number, p3, p1);

    }

现在开始编写递归函数.

public static void playKochSnowFlake(Graphics g,int number,Point p1,Point p2) {
      if(number == 0){
        g.drawLine(p1.x, p1.y,p2.x, p2.y);
      }
      else{
         int deltaX = p2.x - p1.x;
          int deltaY = p2.y - p1.y;

          Point x = new Point(p1.x + deltaX / 3, p1.y + deltaY / 3);
          Point y = new Point(p1.x + deltaX * 2 / 3, p1.y + deltaY * 2 / 3);
          Point z = new Point(
           (int)((p1.x + p2.x) / 2 + Math.sin(Math.toRadians(60)) * (p1.y - p2.y) / 3),
           (int)((p1.y + p2.y) / 2 + Math.sin(Math.toRadians(60)) * (p2.x - p1.x) / 3));
          playKochSnowFlake(g, number - 1, p1, x);
          playKochSnowFlake(g, number - 1, x, z);
          playKochSnowFlake(g, number - 1, z, y);
          playKochSnowFlake(g, number - 1, y, p2);
      }
    }

然后将JTextField jta添加到主面板，它输入的数据将传递给number. 因此java制作雪花，为其添加一个侦听器. 如果已经有数据输入，则调用setNumber（）函数来设置数字变量.

jta.addActionListener(new ActionListener() {

      public void actionPerformed(ActionEvent arg0) {
        spl.setNumber(Integer.parseInt(jta.getText()));
      }
    });

整个过程就完成了，剩下的就是简短格式设置.

下面是完整的Java代码:

import java.awt.BorderLayout;
import java.awt.FlowLayout;
import java.awt.Graphics;
import java.awt.Point;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JTextField;

public class SnowFlake extends JFrame {

  private JTextField jta = new JTextField(5);
  private showpanel spl = new showpanel();

  static class showpanel extends JPanel{
    int number = 0;
    public void setNumber(int number) {
      this.number = number;
      repaint();
    }
    public void paintComponent(Graphics g) {
      super.paintComponent(g);//画一个简单的panel

      int side =(int)(Math.min((int)getWidth(),(int)getHeight())*0.8);
      int high =(int)(side*Math.cos(Math.toRadians(30)));

       Point p1 = new Point(getWidth() / 2, 10);
       Point p2 = new Point(getWidth() / 2 - side / 2, 10 + high);
       Point p3 = new Point(getWidth() / 2 + side / 2, 10 + high);

       playKochSnowFlake(g, number, p1, p2);
       playKochSnowFlake(g, number, p2, p3);
       playKochSnowFlake(g, number, p3, p1);

    }
    public static void playKochSnowFlake(Graphics g,int number,Point p1,Point p2) {
      if(number == 0){
        g.drawLine(p1.x, p1.y,p2.x, p2.y);
      }
      else{
         int deltaX = p2.x - p1.x;
          int deltaY = p2.y - p1.y;

          Point x = new Point(p1.x + deltaX / 3, p1.y + deltaY / 3);
          Point y = new Point(p1.x + deltaX * 2 / 3, p1.y + deltaY * 2 / 3);
          Point z = new Point(
           (int)((p1.x + p2.x) / 2 + Math.sin(Math.toRadians(60)) * (p1.y - p2.y) / 3),
           (int)((p1.y + p2.y) / 2 + Math.sin(Math.toRadians(60)) * (p2.x - p1.x) / 3));
          playKochSnowFlake(g, number - 1, p1, x);
          playKochSnowFlake(g, number - 1, x, z);
          playKochSnowFlake(g, number - 1, z, y);
          playKochSnowFlake(g, number - 1, y, p2);
      }
    }
  }

  public SnowFlake() {
    JPanel panel = new JPanel();
    panel.setLayout(new FlowLayout());
    panel.add(new JLabel("Please input the number"));
    panel.add(jta);
    add(spl,BorderLayout.CENTER);
    add(panel,BorderLayout.SOUTH);
    jta.addActionListener(new ActionListener() {

      public void actionPerformed(ActionEvent arg0) {
        spl.setNumber(Integer.parseInt(jta.getText()));
      }
    });
  }
  public static void main(String args[]) {
    SnowFlake snowFlake = new SnowFlake();
    snowFlake.setSize(300, 300);
    snowFlake.setTitle("SnowFlake");
    snowFlake.setLocationRelativeTo(null);
    snowFlake.setVisible(true);
  }
}

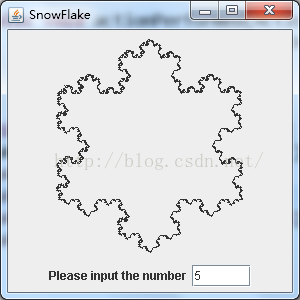

效果图:

以上是本文的全部内容. 希望对大家的学习有所帮助. 我也希望每个人都支持该脚本主页.
