天语W808 ROOT刷机图文教程

你是否正在寻找关于天语w808的内容？让我把最受欢迎的东西奉献给你：

天语w808 ROOT刷机图文教程

浏览：2万+2012-09-26

刷机步骤：

一、先关机，然后按手机音量上键 + 开机键 进入 AP 模式(看到屏幕绿色就松开)

二、连着数据线，电脑提示按装驱动(驱动压缩包内有)

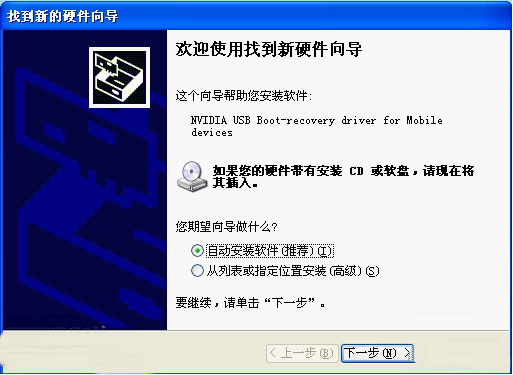

1、给手机上电，短接硬件工程师指定的两点，按开机键，然后插入USB 线，此时 PC 端会弹

出如下界面，如图所示：

2、PC 机默认选择的是第一项 “自动安装软件(推荐)”，选择第二项 “从列表或指定位置安
装(高级)”，点击 “下一步”按钮，如图所示：

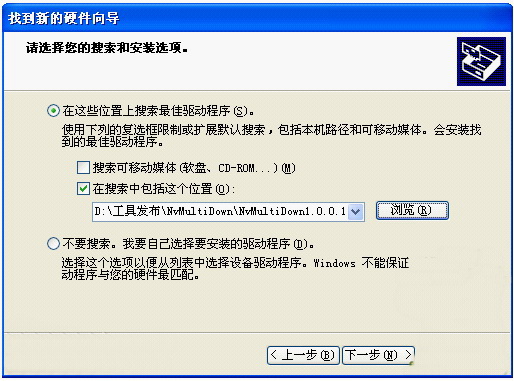

3、点击浏览按钮，找到usbpcdriver 驱动 目录后，点击“下一步”按钮。

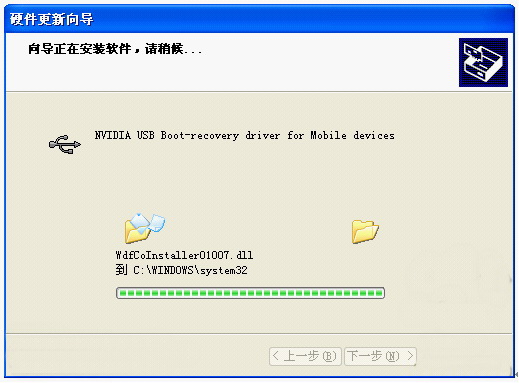

开始安装驱动，如图所示

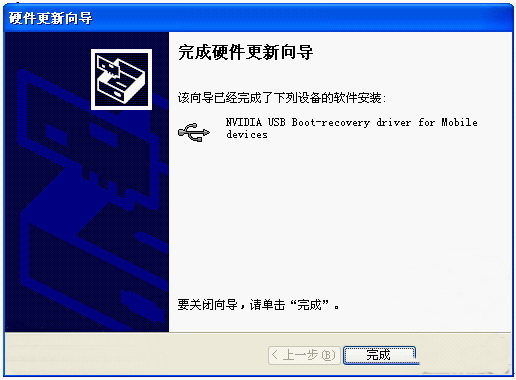

4、稍等片刻，驱动安装完成后，界面如图所示：

5、驱动安装成功后在 “设备管理器”里的 “通用串行总线控制器”节点下会有 “NVDIA USB
Boot-recovery driver for Mobile devices”,如图所示：

三、扣掉电池。重新进AP 模式，重新连接 USB 数据线，此时会自动刷机。

刷机软件上面显示连接成功就自动刷

看到这样表示刷机成功，此时手机自动重启。

四、刷完重启后，进入系统 设置,,隐私权,,0TA 更新操作,,然后 WIPE

系统一下。

音量键控制上下,开机键为确定

选择 WIPE DATA/FACTORY RESET 再选择YES -- DELTET ALL USER DATA 完成后，
选择 reboot system now 确定

不然系统只有 100 多 M 可用空间。切记，，，，切记，。。。。

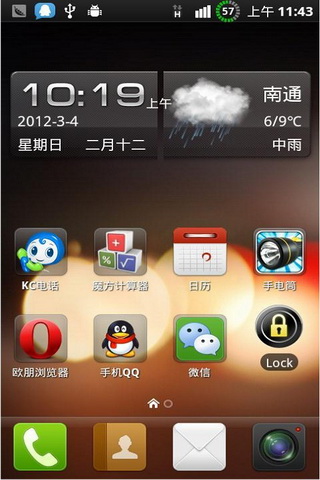

六、此时系统会出现很多系统自带可卸载软件，可到应用程序内删除。

刷机日记：

Sat, March 03, 2012: 21:44.16 PM ======[nvflash_main] Context ---> 0x12ed08 ,

Sat, March 03, 2012: 21:44.16 PM

======nvflash_dispatch -- ConfigFile : E:\NvMultiDown\TBW780126_7675_V2274\flash.cfg

Sat, March 03, 2012: 21:44.16 PM

======nvflash_dispatch -- BctFile : E:\NvMultiDown\TBW780126_7675_V2274\flash.bct

Sat, March 03, 2012: 21:44.16 PM

======nvflash_dispatch -- bootloader_file :

E:\NvMultiDown\TBW780126_7675_V2274\bootloader.bin

Sat, March 03, 2012: 21:44.16 PM

====== nvflash_configfile --E:\NvMultiDown\TBW780126_7675_V2274\flash.cfg

Sat, March 03, 2012: 21:44.16 PM

====== nvflash_configfile --NvFlashConfigFileParse ok

Sat, March 03, 2012: 21:44.16 PM

====== nvflash_configfile --NvFlashConfigListDevices ok

Sat, March 03, 2012: 21:44.17 PM

Sat, March 03, 2012: 21:44.17 PM dk burned: false

Sat, March 03, 2012: 21:44.17 PM boot device: emmc

Sat, March 03, 2012: 21:44.17 PM sending file:

E:\NvMultiDown\TBW780126_7675_V2274\flash.bct

Sat, March 03, 2012: 21:44.17 PM load address: 0x108000 entry point: 0x108000

Sat, March 03, 2012: 21:44.17 PM sending file:

E:\NvMultiDown\TBW780126_7675_V2274\bootloader.bin

Sat, March 03, 2012: 21:44.17 PM waiting for bootloader to initialize

Sat, March 03, 2012: 21:44.18 PM bootloader downloaded successfully

Sat, March 03, 2012: 21:44.18 PM

======nvflash_cmd_create --

Sat, March 03, 2012: 21:44.18 PM

======nvflash_cmd_create -- Nv3pCommand_StartPartitionConfiguration

Sat, March 03, 2012: 21:44.18 PM setting device: 2 3

Sat, March 03, 2012: 21:44.18 PM Creating partition: BCT

Sat, March 03, 2012: 21:44.19 PM Creating partition: PT

Sat, March 03, 2012: 21:44.19 PM Creating partition: EBT

Sat, March 03, 2012: 21:44.19 PM Creating partition: NVC

Sat, March 03, 2012: 21:44.19 PM Creating partition: GP1

Sat, March 03, 2012: 21:44.19 PM Creating partition: SOS

Sat, March 03, 2012: 21:44.19 PM Creating partition: LNX

Sat, March 03, 2012: 21:44.19 PM Creating partition: APP

Sat, March 03, 2012: 21:44.19 PM Creating partition: CAC

Sat, March 03, 2012: 21:44.19 PM Creating partition: MSC

Sat, March 03, 2012: 21:44.19 PM Creating partition: USP

Sat, March 03, 2012: 21:44.19 PM Creating partition: UDA

Sat, March 03, 2012: 21:44.19 PM Creating partition: PAM

Sat, March 03, 2012: 21:44.19 PM Creating partition: FAT

Sat, March 03, 2012: 21:44.19 PM Creating partition: GPT

Sat, March 03, 2012: 21:44.19 PM

======Nv3pCommand_EndPartitionConfiguration ......

Sat, March 03, 2012: 21:44.20 PM Formatting partition 2 BCT please wait..

Sat, March 03, 2012: 21:44.21 PM done!

Sat, March 03, 2012: 21:44.21 PM Formatting partition 3 PT please wait..

Sat, March 03, 2012: 21:44.21 PM done!

Sat, March 03, 2012: 21:44.21 PM Formatting partition 4 EBT please wait..

Sat, March 03, 2012: 21:44.22 PM done!

Sat, March 03, 2012: 21:44.22 PM Formatting partition 16 NVC please wait..

Sat, March 03, 2012: 21:44.22 PM done!

Sat, March 03, 2012: 21:44.22 PM Formatting partition 5 GP1 please wait..

Sat, March 03, 2012: 21:44.23 PM done!

Sat, March 03, 2012: 21:44.23 PM Formatting partition 6 SOS please wait..

Sat, March 03, 2012: 21:44.23 PM done!

Sat, March 03, 2012: 21:44.23 PM Formatting partition 7 LNX please wait..

Sat, March 03, 2012: 21:44.23 PM done!

Sat, March 03, 2012: 21:44.23 PM Formatting partition 8 APP please wait..

Sat, March 03, 2012: 21:44.24 PM done!

Sat, March 03, 2012: 21:44.25 PM Formatting partition 9 CAC please wait..

Sat, March 03, 2012: 21:44.25 PM done!

Sat, March 03, 2012: 21:44.25 PM Formatting partition 10 MSC please wait..

Sat, March 03, 2012: 21:44.26 PM done!

Sat, March 03, 2012: 21:44.26 PM Formatting partition 11 USP please wait..

Sat, March 03, 2012: 21:44.27 PM done!

Sat, March 03, 2012: 21:44.27 PM Formatting partition 12 UDA please wait..

Sat, March 03, 2012: 21:44.29 PM done!

Sat, March 03, 2012: 21:44.29 PM Formatting partition 13 PAM please wait..

Sat, March 03, 2012: 21:44.30 PM done!

Sat, March 03, 2012: 21:44.30 PM Formatting partition 14 FAT please wait..

Sat, March 03, 2012: 21:44.39 PM done!

Sat, March 03, 2012: 21:44.39 PM Formatting partition 15 GPT please wait..

Sat, March 03, 2012: 21:44.39 PM done!

Sat, March 03, 2012: 21:44.39 PM done!
Sat, March 03, 2012: 21:44.39 PM sending file:

E:\NvMultiDown\TBW780126_7675_V2274\bootloader.bin

Sat, March 03, 2012: 21:44.44 PM sending file:

E:\NvMultiDown\TBW780126_7675_V2274\microboot.bin

Sat, March 03, 2012: 21:44.45 PM sending file:

E:\NvMultiDown\TBW780126_7675_V2274\recovery.img

Sat, March 03, 2012: 21:44.46 PM sending file:

E:\NvMultiDown\TBW780126_7675_V2274\boot.img

Sat, March 03, 2012: 21:44.48 PM sending file:

E:\NvMultiDown\TBW780126_7675_V2274\system.img

Sat, March 03, 2012: 21:45.52 PM sending file:

E:\NvMultiDown\TBW780126_7675_V2274\userdata.img

Sat, March 03, 2012: 21:46.14 PM sending file:

E:\NvMultiDown\TBW780126_7675_V2274\cardmedia.img

Sat, March 03, 2012: 21:46.16 PM

-- NvFlashCommand_Go ...

Sat, March 03, 2012: 21:46.18 PM ======[nvflash_main] return

[nvflash_main] return

看到这样表示刷机成功
