33-ns Instruction Cycle Time (30 MHz)
30-MIPS Performance
Low-Power 3.3-V Design
Based on TMS320C2xx DSP CPU Core
Code-Compatible With F243/F241/C242
Instruction Set and Module Compatible With F240/C240
On-Chip Memory
Up to 32K Words x 16 Bits of Flash EEPROM (4 Sectors)
Up to 2.5K Words x 16 Bits of Data/Program RAM
544 Words of Dual-Access RAM
Up to 2K Words of Single-Access RAM
Boot ROM
SCI/SPI Bootloader
Two Event-Manager (EV) Modules (EVA and EVB), Each Include:

Two 16-Bit General-Purpose Timers
Eight 16-Bit Pulse-Width Modulation (PWM) Channels Which Enable:
Three-Phase Inverter Control
Center- or Edge-Alignment of PWM Channels
Emergency PWM Channel Shutdown With External PDPINTx\ Pin
Programmable Deadband (Deadtime) Prevents Shoot-Through Faults
Three Capture Units For Time-Stamping of External Events
On-Chip Position Encoder Intece Circuitry
Synchronized Analog-to-Digital Conversion

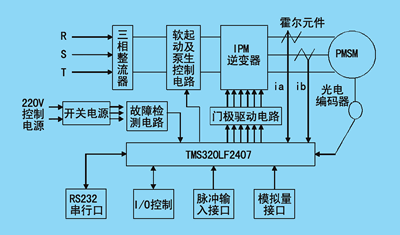

Designed for AC Induction, BLDC, Switched Reluctance, and Stepper Motor Control
Applicable for Multiple Motor and/or Converter Control
External Memory Intece (LF2407)
192K Words x 16 Bits of Total Memory:
64K Program, 64K Data, 64K I/O
Watchdog (WD) Timer Module
10-Bit Analog-to-Digital Converter (ADC)
8 or 16 Multiplexed Input Channels
500 ns Minimum Conversion Time
Selectable Twin 8-Input Sequencers Triggered by Two Event Managers
Controller Area Network (CAN) 2.0B Module

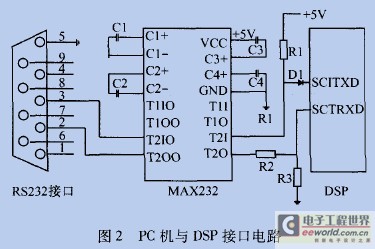

Serial Communications Intece (SCI)
16-Bit Serial Peripheral Intece (SPI) Module

Phase-Locked-Loop (PLL)-Based Clock Generation
